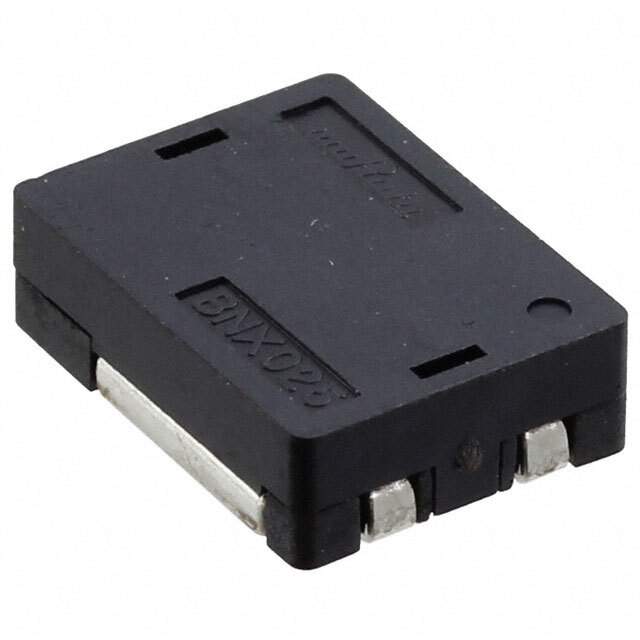

BNX024H01L

Part No BNX024H01L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 4.7UF SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 5th
Technology LC
Number of Channels 2
Attenuation Value 35dB @ 100kHz to 1GHz
Resistance - Channel (Ohms) 0.00043
Current 15A
Values C = 4.7μF
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications Automotive
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.476" L x 0.358" W (12.10mm x 9.10mm)
Height 0.146" (3.70mm)
Win Source Part Number 81389-BNX024H01L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BNX024H01L CAD Model

Description

Overview of BNX024H01L

The BNX024H01L component stands out due to its high efficiency and adaptability, making it a preferred choice for numerous technical applications. Its design is focused on delivering superior performance and ease of use.

Features & Benefits

  • High Efficiency: Optimizes operations to achieve maximum output with minimal energy usage.
  • Sturdy Build: Engineered to resist wear and tear over prolonged usage.
  • Easy Integration: Designed to seamlessly integrate with existing systems.

Applications

  • Renewable Energy Systems
  • Medical Devices
  • Transport Systems
  • Data Centers

This component is especially suited for those aiming for high efficiency and adaptability across various sectors.
