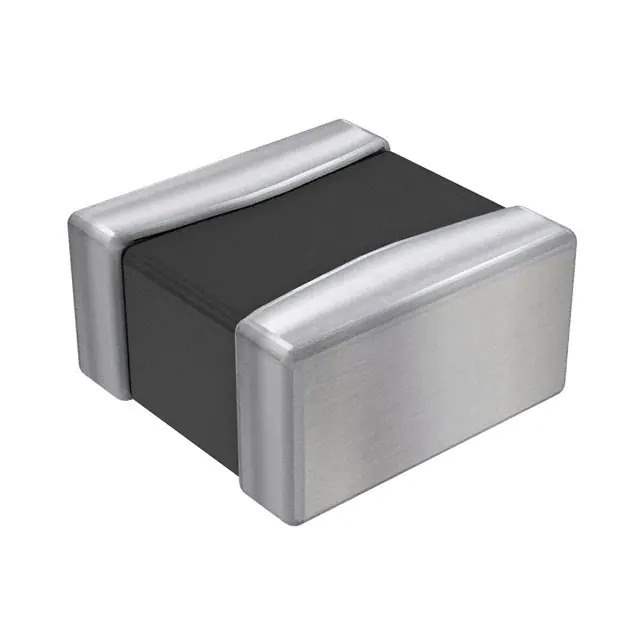

1285AS-H-1R0M=P2 Real Image
Same model may have multiple batches, images only for reference.

1285AS-H-1R0M=P2

Part No 1285AS-H-1R0M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1UH 2.2A 96 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics North America
Series DFE201610C
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Shielding Shielded
DC Resistance (DCR) 96mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number 1285AS
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 853906-1285AS-H-1R0M=P2
Ultra Librarian 3D Model Ultra Librarian 1285AS-H-1R0M=P2 CAD Model

Description

The 1285AS-H-1R0M=P2 is a fixed inductor from Murata Electronics.

  • Series: DFE201610C
  • Core Type: Drum
  • Winding Type: Wirewound
  • Inductance: 1 µH
  • Height: 0.039" (1.00mm)
  • Package: Tape and Reel
  • Shielding: Shielded
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 85°C
  • Current Rating: 2.2A
  • Mounting Type: Surface Mount
