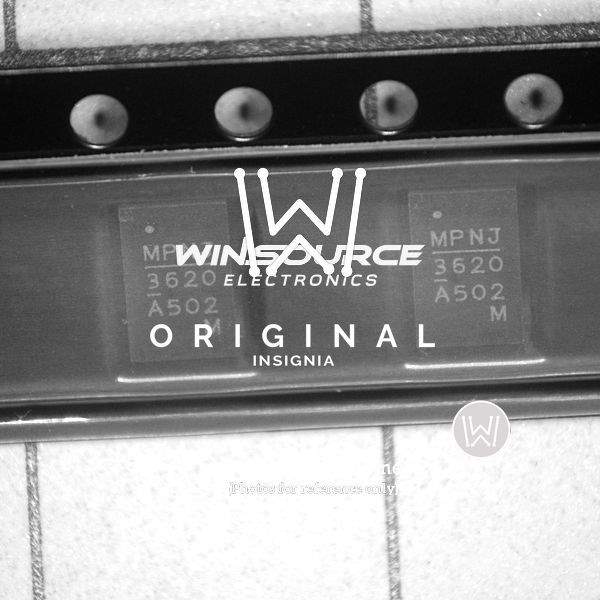

MPM3620GQV-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MPM3620GQV-Z real image15686
Same model may have multiple batches, images only for reference.

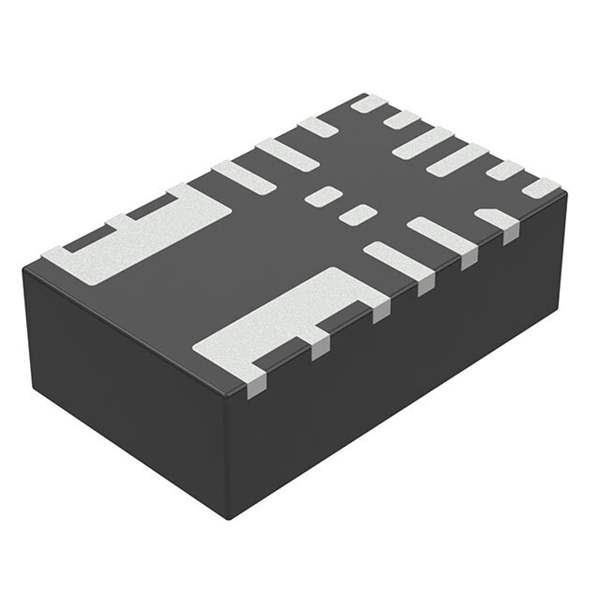

MPM3620GQV-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MPM3620GQV-Z real image15686
MPM3620GQV-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MPM3620GQV-Z real image15686
Same model may have multiple batches, images only for reference.

MPM3620GQV-Z

Part No MPM3620GQV-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 4.5-24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT);
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 24V
Voltage - Output 1 0.8 ~ 18.48V
Current - Output (Max) 2A
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 20-PowerLFQFN Module
Size / Dimension 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
Supplier Device Package 20-QFN (3x5)
Control Features Enable, Active High
Ultra Librarian 3D Model Ultra Librarian MPM3620GQV-Z CAD Model

Description

The 808692-MPM3620GQV-Z is a non-isolated PoL module designed for use in ITE (commercial) applications.

  • Package: Reel
  • Mounting Style: SMD
  • Features: OCP, OTP, UVLO
  • Control Features: Enable, Active High
  • Number of Outputs: 1
  • Voltage Input (min): 4.5V
  • Voltage Output 1: 4.5 ~ 24V
  • Maximum Input Voltage: 24V
  • Current Output (maximum): 2A
  • Supplier Device Package: 20-QFN (5x3)
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
  • Manufacturer Package: 20-PowerLFQFN Module
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 2,500
  • MSL Level: 3 (168 hours)
