Same model may have multiple batches, images only for reference.

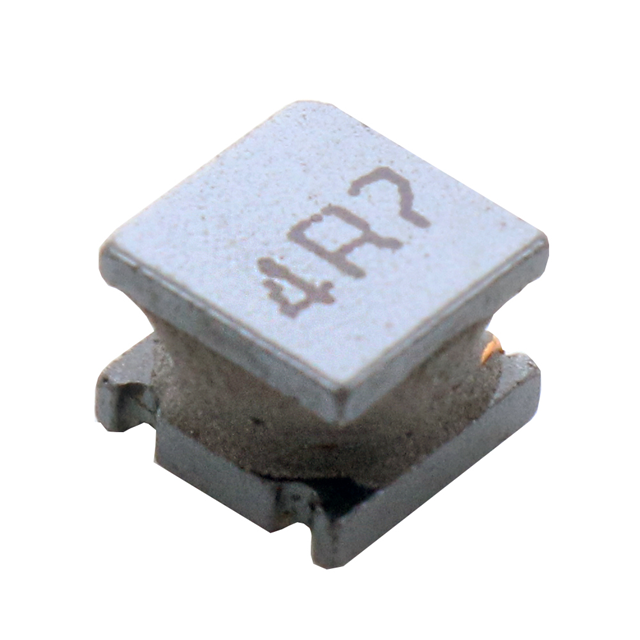

MPL-SE5040-1R0 Real Image
Same model may have multiple batches, images only for reference.

MPL-SE5040-1R0

Part No MPL-SE5040-1R0
Manufacturer Monolithic Power Systems Inc.
Catalog Fixed Inductors
Description FIXED IND 1UH 7.6A 9.4 MOHM SMD / 1 µH Semi-Shielded Inductor 7.6 A 9.4mOhm Nonstandard, 2 Lead
Datasheet
MPL-SE5040-1R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Monolithic Power Systems Inc.
Series MPL-SE
Package Tape & Reel
Inductance 1 µH
Current Rating (Amps) 7.6 A
Current - Saturation (Isat) 10.5A
Shielding Semi-Shielded
DC Resistance (DCR) 9.4mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, 2 Lead
Dimension 0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number MPL-SE5040
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 1589-MPL-SE5040-1R0DKR,1589-MPL-SE5040-1R0TR,1589-MPL-SE5040-1R0CT
Standard Package 1,200
Win Source Part Number 1231303-MPL-SE5040-1R0
Ultra Librarian 3D Model Ultra Librarian MPL-SE5040-1R0 CAD Model

Description

The MPL-SE5040-1R0 is a reliable electronic component manufactured by Monolithic Power Systems Inc. It is a fixed inductor with a semi-shielded shielding and a DC resistance (DCR) of 9.4mOhm. The component has a current rating (amps) of 7.6 A and an inductance frequency-test of 100 kHz.
