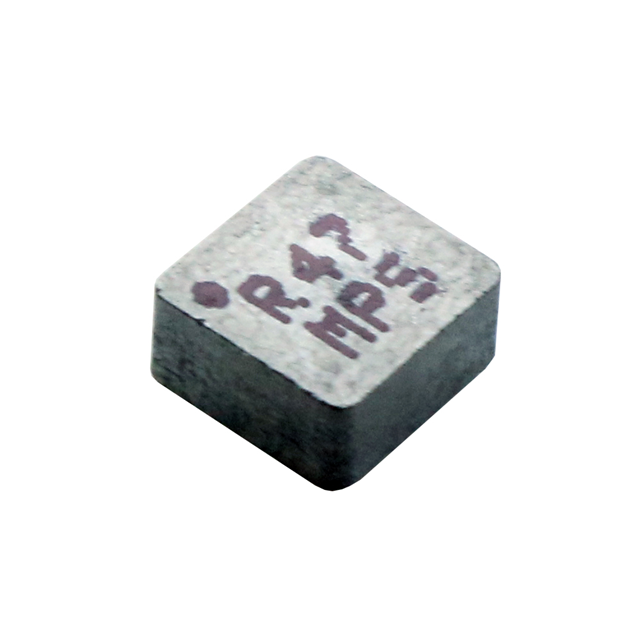

Same model may have multiple batches, images only for reference.
MPL-AL5030-R56 Monolithic Power Systems Inc.
Same model may have multiple batches, images only for reference.

MPL-AL5030-R56

Part No MPL-AL5030-R56
Manufacturer Monolithic Power Systems Inc.
Catalog Fixed Inductors
Description FIXED IND 560NH 13.2A 3.92 MOHM
Datasheet
MPL-AL5030-R56 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309916-MPL-AL5030-R56
Category Inductors, Coils, Chokes >Fixed Inductors
Mfr Monolithic Power Systems Inc.
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Molded
Inductance 560 nH
Current Rating (Amps) 13.2 A
Current - Saturation (Isat) 22A
Shielding Unshielded
DC Resistance (DCR) 3.92mOhm
Ultra Librarian 3D Model Ultra Librarian MPL-AL5030-R56 CAD Model

Description

  • Size 5.5mmx5.3mmx2.9mm
  • Low DCR
  • Low AC Losses
  • Low Audible Noise
  • Molded Construction
  • Soft Saturation
  • Stable Over High Temperatures
  • Max Operating Temp +155°C
  • RoHS/REACH-Compliant, Halogen-Free
