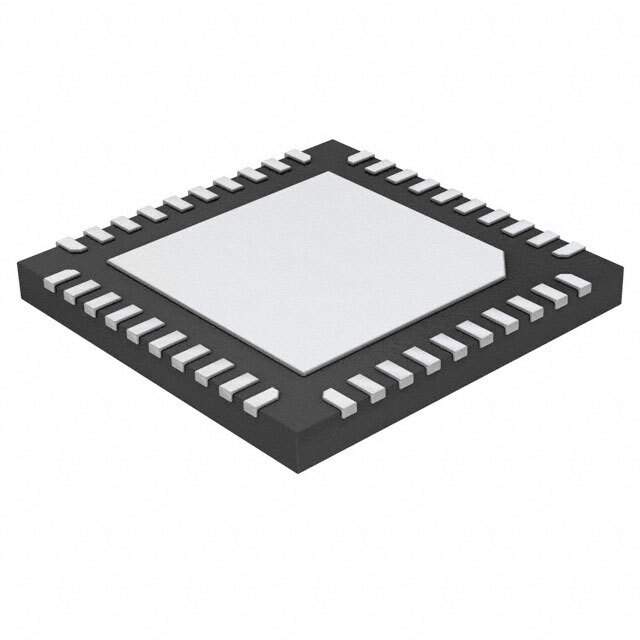

MP6536DU-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP6536DU-LF-Z

Part No MP6536DU-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Full, Half - Bridge Drivers
Description 26V, 5.5A, 3-CHANNEL HALF-BRIDGE
Datasheet
MP6536DU-LF-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 39 Weeks
Features Half Bridge (3) Driver DC Motors, General Purpose Power MOSFET 40-QFN (5x5)
Manufacturer Monolithic Power Systems Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 40-VFQFN Exposed Pad
Case / Package 40-QFN (5x5)
Family Name MP6536
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 1589-1714-6, 1589-1714-1, MP6536DU-LF-Z-ND, 1589-1714-2
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 885651-MP6536DU-LF-Z
Ultra Librarian 3D Model Ultra Librarian MP6536DU-LF-Z CAD Model

Description

The Monolithic Power Systems Inc. MP6536DU-LF-Z is an integrated circuit that features a half-bridge (3) driver for DC motors and a general-purpose power MOSFET.

  • Function: Half-bridge (3) driver for DC motors and general-purpose power MOSFET
  • Applications: Automotive, industrial, and consumer electronics
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package: 40-QFN (5x5)
  • Operating Temperature: -40°C to 125°C
  • Compliance: ROHS3 compliant
  • ECCN: EAR99
