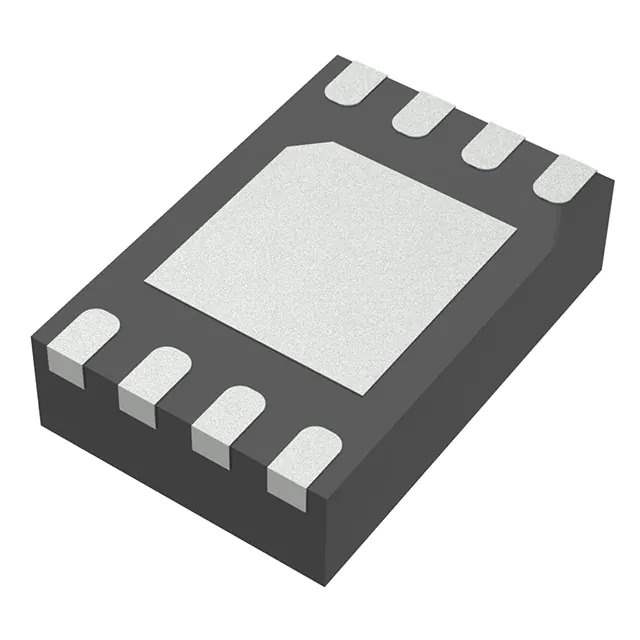

MP3305DD-LF-Z

Name: MP3305DD-LF-Z
Brand: Monolithic Power Systems Inc.
SKU: 643431
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MP3305DD-LF-Z
Manufacturer	Monolithic Power Systems Inc.
Catalog	PMIC - LED Drivers
Description	IC LED DRVR RGLTR PWM 1.33A 8QFN
Datasheet	MP3305DD-LF-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr	Monolithic Power Systems Inc.
Package	Tape & Reel
Product Status	Active
Type	DC DC Regulator
Topology	Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	1
Voltage - Supply (Min)	2.5V
Voltage - Supply (Max)	6V
Voltage - Output	36V
Current - Output / Channel	1.33A (Switch)
Frequency	2.2MHz
Dimming	PWM
Applications	Backlight
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-TFDFN Exposed Pad
Supplier Device Package	8-QFN (2x3)
Base Product Number	MP3305
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	643431-MP3305DD-LF-Z
Ultra Librarian 3D Model	Ultra Librarian MP3305DD-LF-Z CAD Model

Alternative Products

Description

The MP3305DD-LF-Z is a DC DC regulator LED driver manufactured by Monolithic Power Systems Inc.

Application: backlight applications
Category: Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Topology: Step-up (boost)
Dimming: PWM dimming function
Package: tape & reel
Voltage Supply Range: 2.5V to 6V
Frequency: 2.2MHz
Mounting: Surface mountable
Package: 8-TFDFN Exposed Pad
Operating Temperature: -40°C to 85°C
Status: Active
Widely used in: various backlight applications
