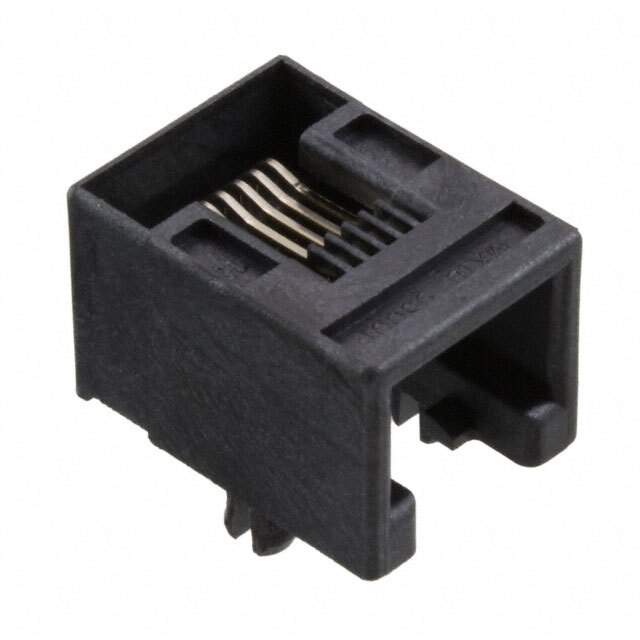

Same model may have multiple batches, images only for reference.

95501-2661

Name: 95501-2661
Brand: Molex, LLC
SKU: 996486
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	95501-2661
Manufacturer	Molex, LLC
Catalog	Modular Connectors
Description	Modular Connectors / Ethernet Connectors MDJCK 6/6 RA LOPRO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	UL
Color	Black
Contact Material	Bronze, Tin
Contact Plating	Gold
Contact Resistance	20 mΩ
Country of Origin	IE
Current Rating	1.5 A
Depth	18.1 mm
Flammability Rating	UL94 V-0
Gender	Female
Halogen Free	Low Halogen
Height	11.65 mm
Housing Material	Thermoplastic
Insulation Material	Polyester
Insulation Resistance	500 MΩ
Lead Free	Yes
Length	13.21 mm
Maximum Operating Temperature	80 °C
Max Voltage Rating (DC)	125 V
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Contacts	6
Number of Pins	2
Number of Ports	1
Number of Positions	6
Orientation	Right Angle
Pitch	2.54 mm
Plating	Tin
REACH SVHC	Unknown
RoHS	Compliant
Shielding	Unshielded
Termination	Through Hole
Voltage Rating	125 V
Voltage Rating (DC)	125 V
Width	11.5 mm
Win Source Part Number	996486-95501-2661
Categories	Modular Connectors
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 95501-2661 CAD Model

Description

The Molex 996486-95501-2661 is a 6-position, right-angle, female modular connector. It has a pitch of 2.54 mm and a voltage rating of 125 V.

Product Name: Molex 996486-95501-2661
Manufacturer: Molex
Positions: 6
Orientation: Right-angle
Connector Type: Female modular connector
Pitch: 2.54 mm
Voltage Rating: 125 V
Current Rating: 1.5 A
Contact Material: Bronze, tin
Approval: UL approved
Contact Plating: Gold
Height: 11.65 mm
Width: 11.5 mm
Length: 13.21 mm
Shielded: Unshielded
Housing Material: Thermoplastic
Insulation Material: Polyester
Contact Resistance: 20 mΩ
RoHS Compliant: RoHS compliant
Lead-Free: Lead-free
