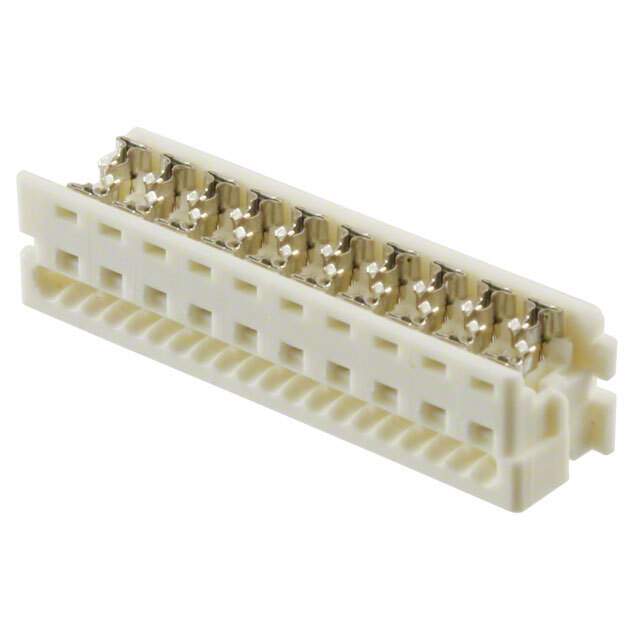

90327-0320 Real Image
Same model may have multiple batches, images only for reference.

90327-0320

Part No 90327-0320
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Picoflex PF-50, Low Profile, IDT Receptacle, 20 Circuits, White, Tin (Sn) Plated, Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Connector Type IDC, Receptacle, Socket
Contact Current Rating 1.2 A
Contact Material Bronze, Tin
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin MY
Current Rating 1.2 A
Flammability Rating UL94 V-0
Gender Female
Glow Wire Compliant Non-compliant
Housing Color White
Housing Material Polyester
Lead Free Yes
Lead Pitch 1.27 mm
Material Polyester
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable, Free Hanging
Number of Circuits 20
Number of Contacts 20
Number of Pins 20
Number of Poles 20
Number of Positions 20
Number of Rows 2
Orientation Right Angle
Pitch 1.27 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination IDC
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Weight 1.186002 g
Width 24.13 mm
Wire/Cable Gauge 26 AWG
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Win Source Part Number 970916-90327-0320
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90327-0320 CAD Model

Description

The Molex LLC 970916-90327-0320 is a white female connector with 20 positions and 2 rows.

  • Color: White
  • Type: Female
  • Positions: 20
  • Rows: 2
  • Pitch: 1.27 mm
  • Termination: IDC
  • Contact Material: Bronze and Tin
  • Voltage Rating: 250 V
  • Current Rating: 1.2 A
  • Contact Plating: Tin
  • Housing Material: Polyester
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
  • RoHS Compliant: Yes
  • Suitable for: Cable, Free Hanging
