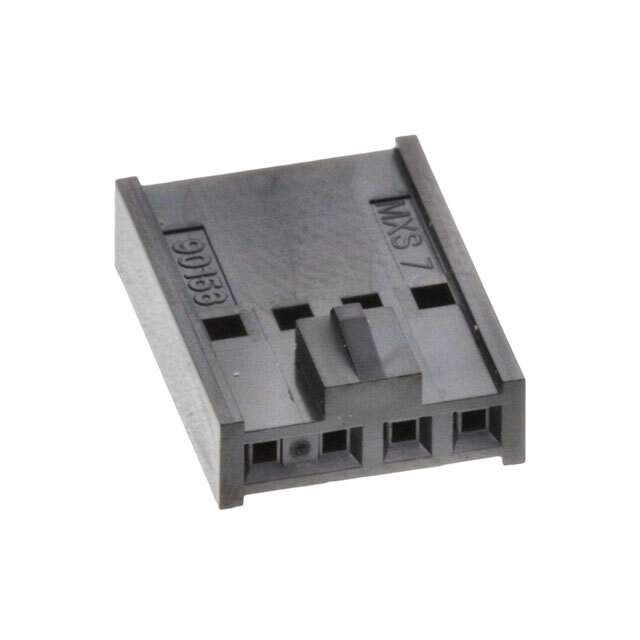

Same model may have multiple batches, images only for reference.

90156-0144

Name: 90156-0144
Brand: Molex, LLC
SKU: 1198768
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	90156-0144
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	2.54mm Pitch C-Grid III™ Crimp Housing Single Row, 4 Circuits
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Contact Gender	Female
Contact Resistance	20 mΩ
Current Rating	3 A
Depth	15.24 mm
Gender	Receptacle
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Housing Color	Black
Housing Material	PPO
Insulation Resistance	5 GΩ
Lead Free	Lead Free
Lead Pitch	2.54 mm
Length	11.22 mm
Material	Polyphenylene
Max Operating Temperature	105 °C
Min Operating Temperature	-55 °C
Mount	Cable
Number of Contacts	4
Number of Pins	4
Number of Positions	4
Number of Rows	1
Orientation	Straight
Packaging	Bulk
Pitch	2.54 mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050, 8536695050
Termination	Crimp
Voltage Rating	350 V
Voltage Rating (AC)	350 V
Width	5.35 mm
Win Source Part Number	1198768-90156-0144
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 90156-0144 CAD Model

Alternative Products

Description

The Molex LLC 1198768-90156-0144 is a 1-row, 4-position black colored cable mounted connector.

Pitch: 2.54 mm
Termination: Crimp
Current Rating: 3 A
Voltage Rating: 350 V
Housing Material: PPO
Contact Plating: Gold
Contact Gender: Female
Contact Resistance: 20 mΩ
Length: 11.22 mm
Width: 5.35 mm
Depth: 15.24 mm
Lead-Free: Yes
RoHS Compliant: Yes
Halogen Content: Low
Supply and Demand Status: Limited
Popularity: Medium
Alternative Part Numbers: 0901560144
