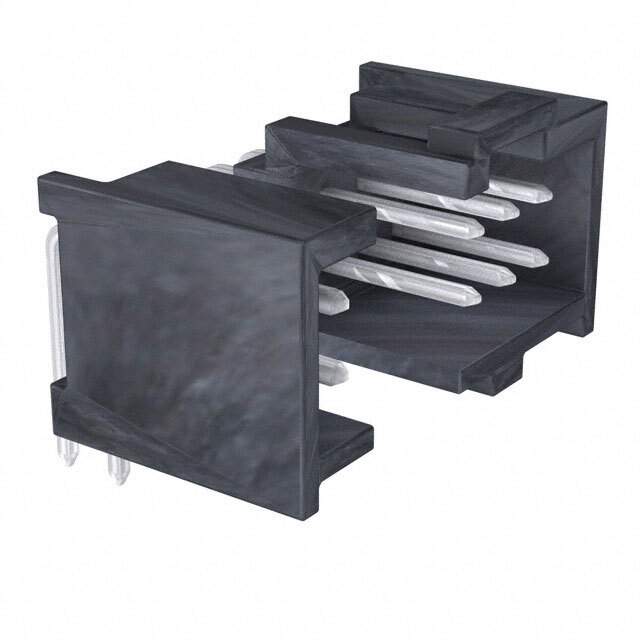

0901303112

Get a Quote

Part No	0901303112
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 12POS 2.54MM / Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Insulation Height	0.384" (9.75mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1µin (3.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Applications	Automotive, General Purpose
Base Product Number	090130
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM8264,90130-3112,901303112
Standard Package	1,440
Win Source Part Number	1332470-0901303112
Ultra Librarian 3D Model	Ultra Librarian 0901303112 CAD Model

Description

The Molex 12-Position Male Pin Header Connector is a rectangular connector with a solder termination and latch holder fastening type.

Termination: Solder
Fastening Type: Latch Holder
Number of Rows: Two
Contact Type: Male Pins
Insulation Material: Polyester and Glass-Filled
Insulation Color: Black
Pitch: 0.100" (2.54mm)
Mating Cycle: 500
Design: Shrouded 4-Wall
Operating Temperature Range: -40°C to 105°C
Mounting Style: Through-Hole, Right-Angle
Standard Package: 1,440
RoHS3 Compliant: Yes
