Same model may have multiple batches, images only for reference.

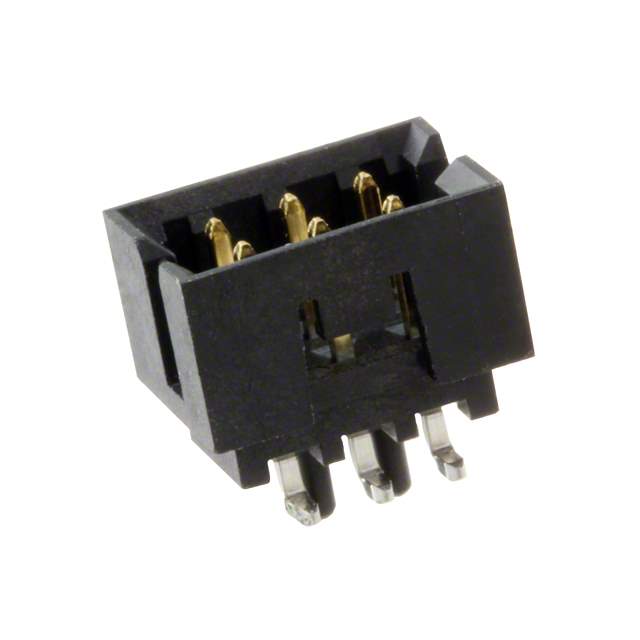

87832-0620 Real Image
Same model may have multiple batches, images only for reference.

87832-0620

Part No 87832-0620
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 6POS 2MM VERT SMD
Datasheet
87832-0620 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.141" (3.60mm)
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Telecommunications
Win Source Part Number 1010454-87832-0620
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 87832-0620 CAD Model

Description

The 1010454-87832-0620 is a header connector from Molex with a shrouded 4 wall and 6 positions.

  • Fastening Type: Push-pull
  • Termination: Solder
  • Pitch: 2 mm
  • RoHS Compliant: Yes
  • Mounting Style: SMD (SMT)
  • Applications: Automotive, general purpose, and telecommunications
  • Housing Material: Polyamide (PA), nylon, glass filled
  • Insulation Color: Black
  • Supply and Demand Status: Balance
  • Popularity: Medium
