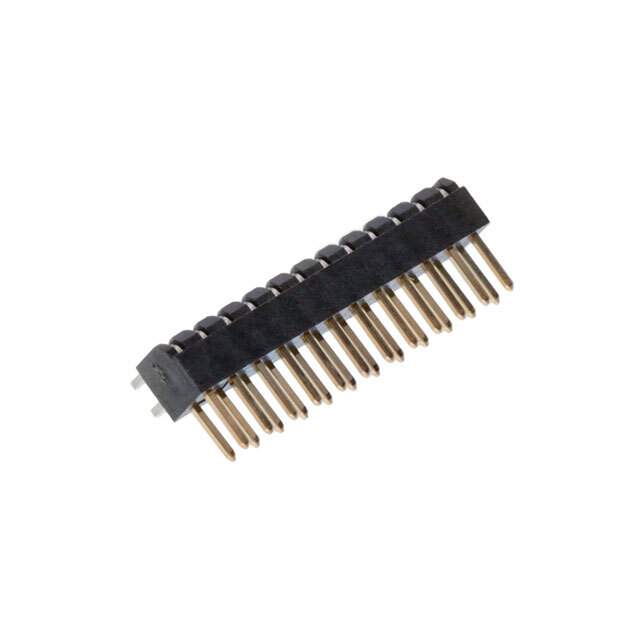

0877602416 Real Image
Same model may have multiple batches, images only for reference.

0877602416

Part No 0877602416
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 24POS 2MM / Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.102" (2.60mm)
Insulation Height 0.169" (4.30mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications Automotive, General Purpose, Telecommunications
Base Product Number 087760
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 877602416,87760-2416-TR100,WM18556,WM18622,87760-2416-TR300,WM18622-NDR,WM18556-ND,87760-2416
Standard Package 400
Win Source Part Number 1332910-0877602416
Ultra Librarian 3D Model Ultra Librarian 0877602416 CAD Model

Description

The Molex 1332910-0877602416 is a 24-position header connector with a male pin contact type.

  • Pitch: 0.079” (2.00mm)
  • Applications: Suitable for board-to-board or cable connections.
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm) for mating and tin and 78.7μin (2.00μm) for post.
  • Mounting Style: Right-angle
  • Insulation Material: Polycyclohexylenedimethylene terephthalate (PCT) and glass-filled
  • Applications Suitability: Suitable for use in automotive, general purpose, and telecommunications applications.
