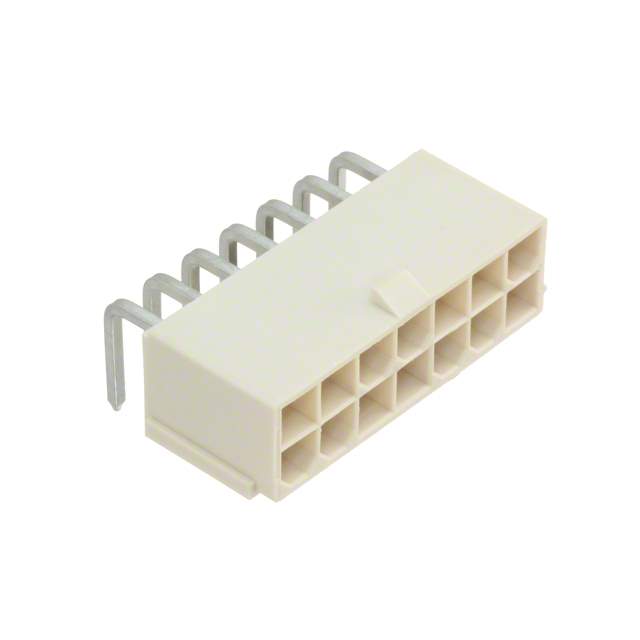

Same model may have multiple batches, images only for reference.

0874271402

Get a Quote

Part No	0874271402
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 14POS 4.2MM / Connector Header Through Hole, Right Angle 14 position 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.394" (10.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	General Purpose, Industrial, Telecommunications
Base Product Number	087427
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	874271402,0874271402-ND,WM14707,87427-1402,087427-1402
Standard Package	600
Win Source Part Number	1333075-0874271402
Ultra Librarian 3D Model	Ultra Librarian 0874271402 CAD Model

Description

The Molex 1333075-0874271402 is a header male pin connector with 14 positions and a 4.20mm pitch.

Application: Board to Cable/Wire
Shrouded: 4 Wall
Insulation Material: Polyamide (PA46), Nylon 4/6
Material Flammability Rating: UL94 V-0
Fastening Type: Locking Ramp
Mounting: Surface, Right Angle
Contact Finish Mating: Tin
Contact Finish Thickness Mating: 100.0μin (2.54μm)
Contact Finish Post: Tin
Contact Finish Thickness Post: 100.0μin (2.54μm)
