Same model may have multiple batches, images only for reference.

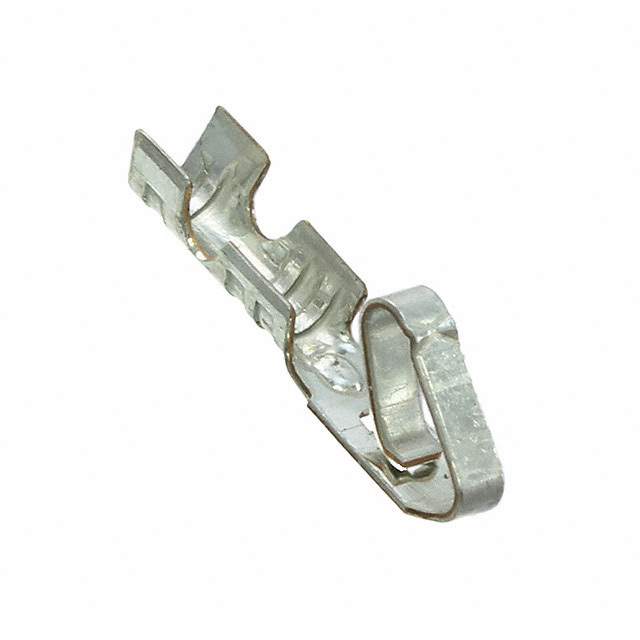

8650805 Real Image
Same model may have multiple batches, images only for reference.

8650805

Part No 8650805
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr Molex
Series KK254, 41572
Package Bulk
Pin or Socket Non-Gendered
Contact Termination Crimp
Wire Gauge 22-30 AWG
Contact Finish Tin
Contact Finish Thickness 100.0µin (2.54µm)
Base Product Number 000865
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1315066-8650805
Ultra Librarian 3D Model Ultra Librarian 8650805 CAD Model

Description

The Molex KK254 series contacts are designed for use in rectangular connectors.

  • Contact Gender: Non-Gendered
  • Contact Finish: Tin
  • Wire Gauge: 22-30 AWG
  • Contact Finish Thickness: 100.0μin (2.54μm)
  • Termination: Crimp
  • Packaging: Bulk
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.90.4000
