731000069

Part No 731000069
Manufacturer Molex, LLC
Catalog Coaxial Connectors (RF)
Description CONN BNC RCPT R/A 75 OHM PCB
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Style BNC
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75 Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Features Board Guide, Isolated
Housing Color Silver, White

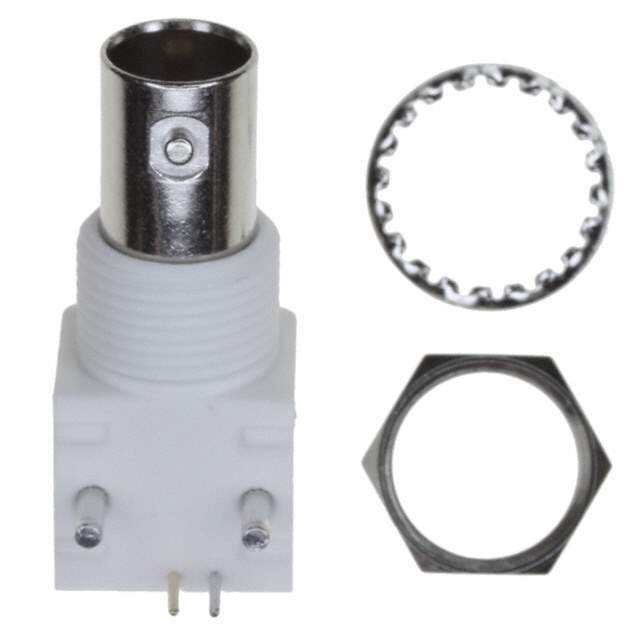

Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Zinc Alloy
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polypropylene (PP)
Center Contact Material Phosphor Bronze
Mating Cycles 500
Win Source Part Number 052723-0731000069
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 731000069 CAD Model

Description

731000069 Component Description

The 731000069 is an essential electronic component, perfect for a variety of applications. This versatile component is designed to meet the needs of both hobbyists and professionals.

  • Applications:
    • Embedded systems
    • Robotics projects
    • Consumer electronics
    • IoT Devices
  • Features and Benefits:
    • High durability ensures long-lasting performance.
    • Compact design facilitates easy integration.
    • Reliable connectivity enhances functionality.
  • Additional Details:
    • Designed to operate efficiently under various conditions.
    • Made from high-quality materials to ensure reliability.
