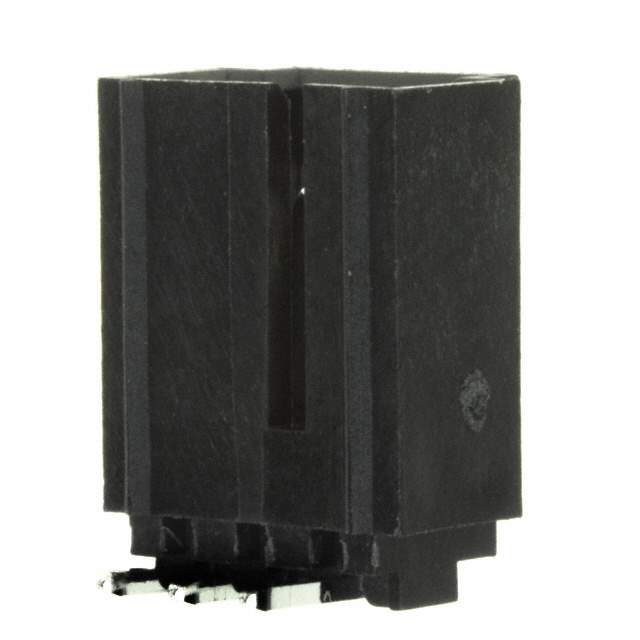

Same model may have multiple batches, images only for reference.

70553-0037

Name: 70553-0037
Brand: Molex, LLC
SKU: 1229259
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	70553-0037
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Connector Shrouded Header 3 Position 2.54mm Solder Right Angle Thru-Hole Tube
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Material	Bronze
Contact Plating	Tin
Contact Resistance	30 mΩ
Country of Origin	US
Current Rating	3 A
Depth	13.59 mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Height	6.99 mm
Housing Color	Black
Housing Material	Thermoplastic
Insulation Resistance	1 GΩ
Lead Free	Lead Free
Lead Pitch	2.54 mm
Length	10.17 mm
Material	Brass
Max Current Rating	3 A
Max Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	3
Number of Contacts	3
Number of Positions	3
Number of Rows	1
Orientation	Right Angle
Pitch	2.54 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	Solder
Voltage Rating	250 V
Voltage Rating (DC)	250 V
Win Source Part Number	1229259-70553-0037
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 70553-0037 CAD Model

Alternative Products

Description

The Molex, LLC 3-position male circular connector is an ideal connector for various electronic applications.

Pitch: 2.54 mm
Color: black
Contact Material: bronze
Contact Plating: tin
Voltage Rating: 250 V
Current Rating: 3 A
