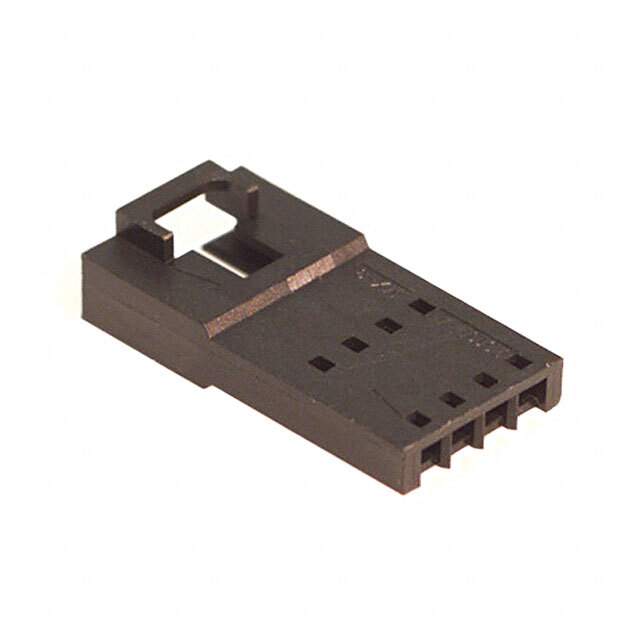

70107-0003 Real Image
Same model may have multiple batches, images only for reference.

70107-0003

Part No 70107-0003
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description SL Wire-to-Wire Crimp Housing, Single Row, Version A, without Mounting Ears, 4 Circuits, Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, UL
Color Black
Contact Gender Female
Country of Origin US
Depth 24.26 mm
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Housing Color Black
Housing Material Polyester
Lead Free Lead Free
Length 12.19 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 4
Number of Pins 4
Number of Positions 4
Number of Rows 1
Orientation Straight
Packaging Bulk
Pitch 2.54 mm
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Crimp
Width 6 mm
Win Source Part Number 1116194-70107-0003
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 70107-0003 CAD Model

Description

The 1116194-70107-0003 is a circular connector housing manufactured by Molex, LLC.

  • Manufacturer: Molex, LLC
  • Type: Circular Connector Housing
  • Number of Positions: 4
  • Pitch: 2.54 mm
  • Length: 12.19 mm
  • Width: 6 mm
  • Approvals: CSA and UL
  • Lead-Free: Yes
  • Supply and Demand Status: Limited
