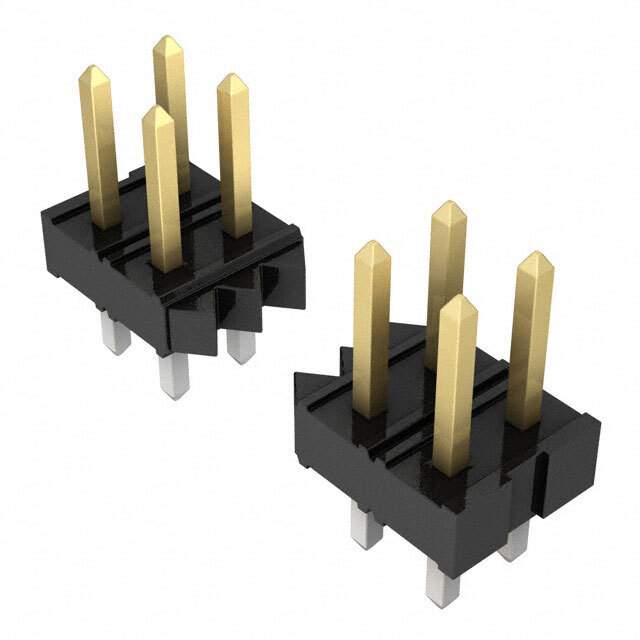

Same model may have multiple batches, images only for reference.
87758-1216 Real Image
Same model may have multiple batches, images only for reference.

87758-1216

Part No 87758-1216
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Unshrouded Header HDR 12 POS 2mm Solder ST Top Entry Thru-Hole Milli-Grid™ Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Bronze, Gold, Nickel
Contact Plating Gold
Country of Origin SG
Current Rating 2 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Height 5.95 mm
Housing Color Black
Housing Material Thermoplastic
Lead Free Yes
Lead Pitch 2 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 12
Number of Contacts 12
Number of Positions 12
Number of Rows 2
Orientation Vertical
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 125 V
Voltage Rating (DC) 125 V
Win Source Part Number 1029132-87758-1216
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 87758-1216 CAD Model

Description

The Molex, LLC 1029132-87758-1216 is a 12-position, 2 mm pitch, black circular connector housing with 2 rows of contacts.

  • Positions: 12
  • Pitch: 2 mm
  • Color: black
  • Type: circular connector housing
  • Rows: 2
  • Termination: solder
  • Material: thermoplastic
  • Contact Material: bronze, gold, and nickel
  • Contact Plating: gold
  • Housing Color: black
  • Height: 5.95 mm
  • Plating: tin
  • RoHS Compliant: yes
  • Maximum Operating Temperature: 105°C
  • Lead-Free: yes
  • Mounting: through-hole
