Same model may have multiple batches, images only for reference.

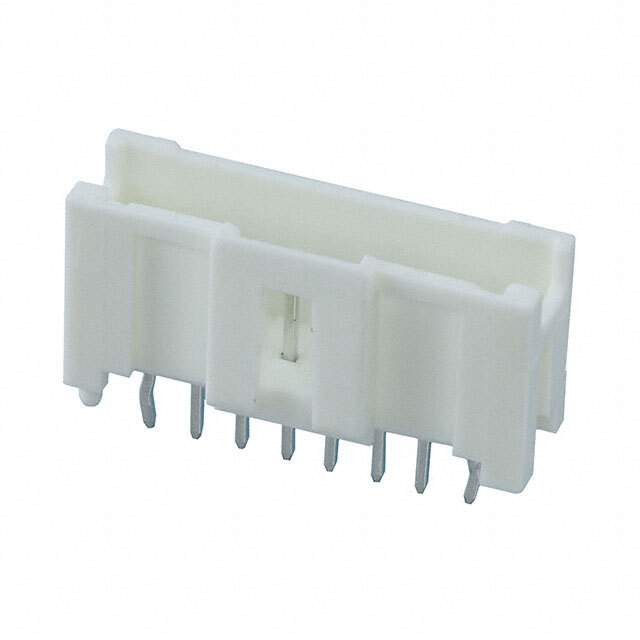

55932-0810 Real Image
Same model may have multiple batches, images only for reference.

55932-0810

Part No 55932-0810
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 8 POS 2mm Solder ST Thru-Hole MicroClasp™ Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0810
Contact Material Brass
Contact Plating Tin
Country of Origin JP
Current Rating 3 A
Glow Wire Compliant Non-compliant
Housing Material Polyester
Insulation Resistance 1 GΩ
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Through Hole
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 1
Orientation Vertical
Pitch 2 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Termination Through Hole
Voltage Rating 250 V
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 28 AWG
Win Source Part Number 1021934-55932-0810
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 55932-0810 CAD Model

Description

The Molex 1021934-55932-0810 is a circular connector housing with 8 positions and 1 row manufactured by Molex, LLC.

  • Positions: 8
  • Row Count: 1
  • Pitch: 2 mm
  • Contact Material: brass
  • Voltage Rating: 250 V
  • Current Rating: 3 A
  • Housing Material: polyester
  • Contact Plating: tin
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -25 °C
  • Supply and Demand Status: shortage
  • Win Source Part Number: 1021934-55932-0810
