Same model may have multiple batches, images only for reference.

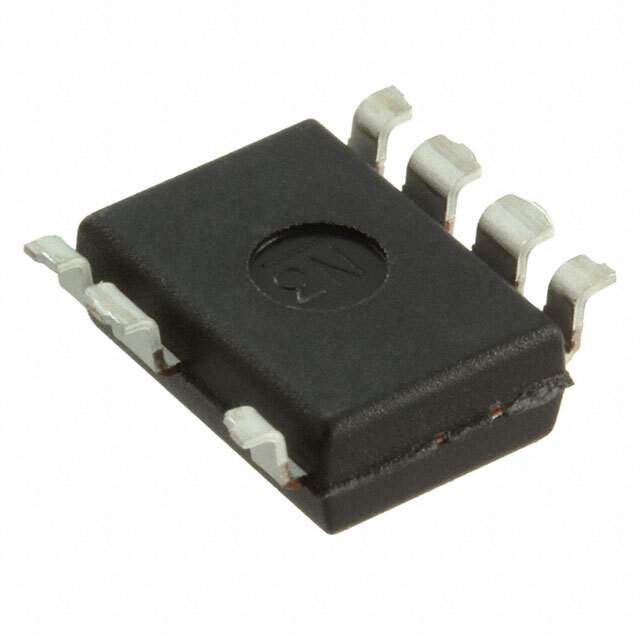

FSD200BM Real Image
Same model may have multiple batches, images only for reference.

FSD200BM

Part No FSD200BM
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC SWIT PWM GREEN UVLO HV 7SOP
Datasheet
FSD200BM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 670V
Topology Flyback
Voltage - Start Up 7V
Supply Voltage - Operating 6 V to 10 V
Duty Cycle 66%
Frequency - Switching 134kHz
Power (Watts) 7W
Fault Protection Current Limiting, Over Load, Over Temperature
Control Operating Temperature -25°C to 85°C (TA)
Case / Package 7-LSOP
Mounting Surface Mount
Win Source Part Number 1040178-FSD200BM
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FSD200BM CAD Model

Description

The Fairchild/ON Semiconductor FSD200BM is a flyback power supply IC.

  • Application: Isolated Power Supply Applications
  • Package: 7-LSOP
  • Power Rating: 7W
  • Output Type: Isolated
  • Switch Type: Internal Switch(s)
  • Voltage Breakdown: 670V
  • Startup Voltage: 7V
  • Duty Cycle: 66%
  • Switching Frequency: 134kHz
  • Fault Protection: Current Limiting, Over Load, Over Temperature
  • Operating Temperature: -25°C to 85°C
  • Supply Voltage: 6V to 10V
