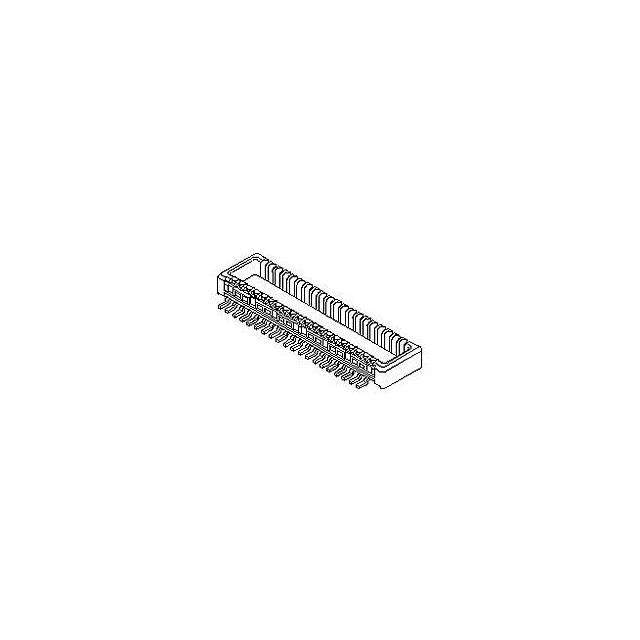

55560-0227

Name: 55560-0227
Brand: Molex, LLC
SKU: 546612
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	55560-0227
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN PLUG 22POS 1.5MM SMD .5MM
Datasheet	55560-0227 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex Connector Corporation
Series	SlimStack 55560
Packaging	Bulk
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	22
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD
Contact Finish	Gold
Contact Finish Thickness	10μin (0.25μm)
Mated Stacking Heights	1.5mm
Height Above Board	0.045" (1.14mm)
Win Source Part Number	764025-55560-0227
Family Name	55560
Introduction Date	June 10, 2010
ECCN	EAR99
Country of Origin	China, Japan
Halogen Free	Compliant
Estimated EOL Date	2026
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 55560-0227 CAD Model

Description

The Molex SlimStack 55560 series is a 22 position plug, outer shroud contacts connector that is designed for bulk packaging.

Positions: 22
Pitch: 0.020" (0.50mm)
Contact Finish: Gold
Contact Finish Thickness: 10μin (0.25μm)
Mounting Type: Surface Mount
Mated Stacking Height: 1.5mm
Height Above Board: 0.045" (1.14mm)
Series: 55560
Category: Connectors and Interconnects
Introduction Date: June 10, 2010
ECCN: EAR99
Supply and Demand Status: Limited
Halogen-Free: Compliant
Country of Origin: China and Japan
EOL Date: 2026 (estimated)
