Same model may have multiple batches, images only for reference.

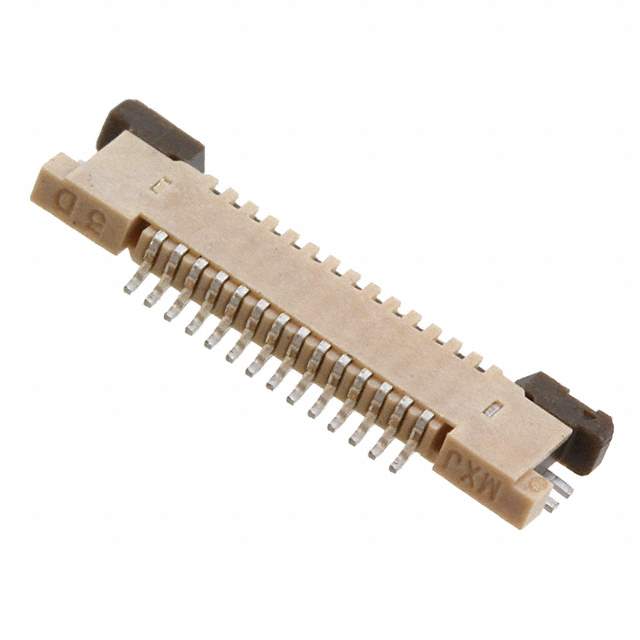

54550-1471 Real Image
Same model may have multiple batches, images only for reference.

54550-1471

Part No 54550-1471
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.50mm Pitch Easy-On™ Type FFC/FPC Connector, 1.20mm Height, Right Angle, SMT, ZIF, Top Contact Style, 14 Circuits,...
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Gold
Country of Origin JP
Current Rating 500 mA
ELV Compliant
Gender Female
Housing Material Thermoplastic
Material Bronze
Mount Surface Mount
Number of Circuits 14
Number of Contacts 14
Number of Positions 14
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel (TR)
Pitch 500 µm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Stackable No
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 1198282-54550-1471
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 54550-1471 CAD Model

Description

The Molex, LLC FFC, FPC (Flat Flexible) Connectors electronic component, part number 1198282-54550-1471, is a female 14-position right angle connector designed for surface mounting.

  • Manufacturer: Molex, LLC
  • Connector Type: FFC, FPC (Flat Flexible)
  • Gender: Female
  • Number of Positions: 14
  • Mounting Angle: Right Angle
  • Mounting Type: Surface Mount
  • Housing Material: Thermoplastic
  • Contact Material: Bronze
  • Contact Plating: Gold
  • Current Rating: 500 mA
  • Voltage Rating: 50 V
  • Supply and Demand Status: Limited
  • Alternative Part Cross-Reference: 54550-1471-TR750
