0536470874

Name: 0536470874
Brand: Molex, LLC
SKU: 1332990
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0536470874
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors

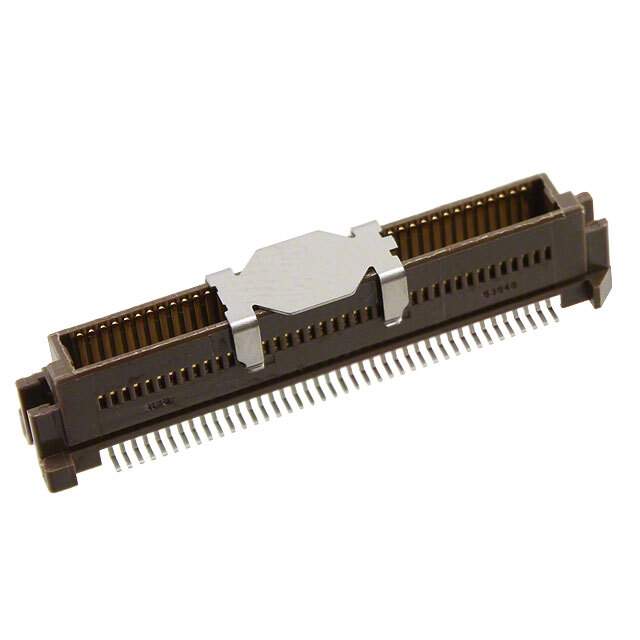

Description	CONN PLUG 80POS SMD GOLD / 80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	80
Pitch	0.025" (0.64mm)
Number of Rows	2
Mounting	Surface Mount
Features	Board Guide, Solder Retention
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	8mm, 14mm
Height Above Board	0.275" (6.99mm)
Base Product Number	053647
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	536470874,WM3950CT,53647-0874,WM3950DKR,WM3950TR
Standard Package	840
Win Source Part Number	1332990-0536470874
Ultra Librarian 3D Model	Ultra Librarian 0536470874 CAD Model

Description

The Molex 1332990-0536470874 is a rectangular connector array with outer shroud contacts.

Connector Type: Plug
Positions: 80
Rows: 2
Pitch: 0.025" (0.64mm)
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Feature: Moisture Resistant
Height Above Board: 0.275" (6.99mm)
Mated Stacking Heights: 8mm and 14mm
Mounting: Surface Mount
Packaging: Reel
Pieces: 840
ROHS3 Compliant: Yes
MSL Level: Unlimited
