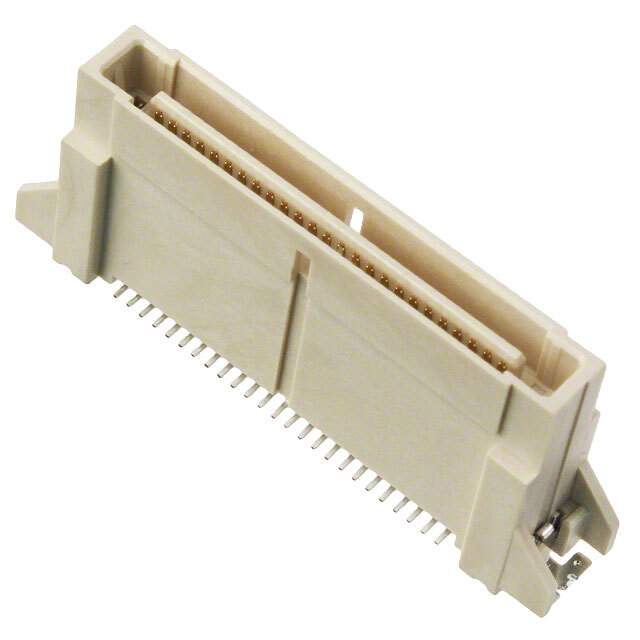

0534080579 Real Image
Same model may have multiple batches, images only for reference.

0534080579

Part No 0534080579
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 50POS SMD GOLD / 50 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex
Series 53408
Package Tube
Product Status Obsolete
Connector Type Plug, Center Strip Contacts
Number of Positions 50
Pitch 0.039" (1.00mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 18mm
Height Above Board 0.644" (16.35mm)
Base Product Number 053408
Standard Package 1,400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339893-0534080579
Ultra Librarian 3D Model Ultra Librarian 0534080579 CAD Model

Description

The Molex 0534080579 is a rectangular connector from Molex.

  • Win Source Part Number: 1339893
  • Series: 53408
  • Number of Positions: 50
  • Pitch: 0.039" (1.00mm)
  • Features: Board Guide, Solder Retention
  • Connector Type: Plug with Center Strip Contacts
  • Number of Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Package: Tube
  • Standard Package: 1,400 units
  • Mated Stacking Heights: 18mm
  • Height Above Board: 0.644" (16.35mm)
  • Mounting Type: Surface Mount
