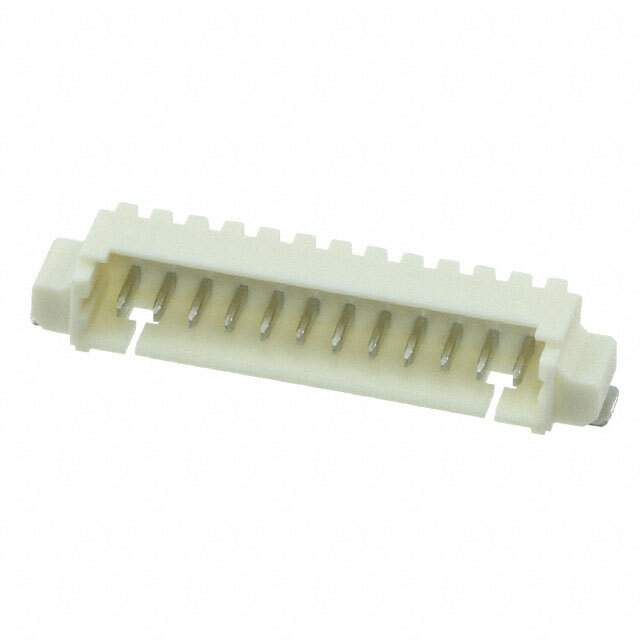

Same model may have multiple batches, images only for reference.

53261-1271

Name: 53261-1271
Brand: Molex, LLC
SKU: 967705
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	53261-1271
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Fiber Optic Connectors 12P FERRRULE KIT W/O SPRING/PINS/HOLDER
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Body Plating	Tin
Color	Beige
Contact Material	Brass, Tin
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	MY
Current Rating	1 A
Gender	Male
Glow Wire Compliant	Non-compliant
Height	3.6 mm
Housing Material	Thermoplastic
Insulation Resistance	100 MΩ
Lead Free	Yes
Lead Pitch	1.25 mm
Maximum Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Circuits	12
Number of Contacts	12
Number of Pins	12
Number of Positions	12
Number of Rows	1
Orientation	Right Angle
Packaging	Cut Tape
Pitch	1.25 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	Solder
Voltage Rating	125 V
Voltage Rating (AC)	125 V
Voltage Rating (DC)	125 V
Working Voltage	125 V
Win Source Part Number	967705-53261-1271
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 53261-1271 CAD Model

Alternative Products

Description

The Molex 967705-53261-1271 is a 12-position, right-angle connector with a pitch of 1.25 mm and a beige color.

Positions: 12
Orientation: Right-Angle
Pitch: 1.25 mm
Color: Beige
RoHS Compliant: Yes
Lead-Free: Yes
Voltage Rating: 125 V
Current Rating: 1 A
Contact Material: Brass, tin
Housing Material: Thermoplastic
Contact Resistance: 20 mΩ
Insulation Resistance: 100 MΩ
Mounting: Surface mount
Maximum Operating Temperature: 85 °C
