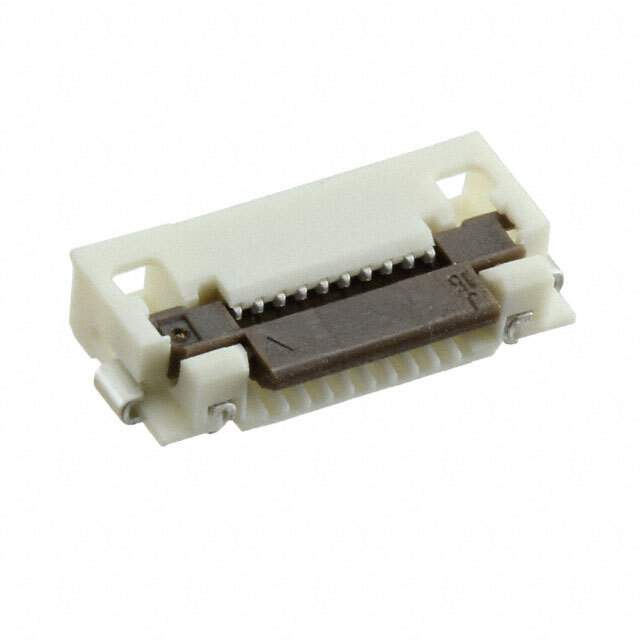

52893-1095 Real Image
Same model may have multiple batches, images only for reference.

52893-1095

Part No 52893-1095
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Easy-On Type FFC/FPC Connector, Right-Angle, Surface Mount, ZIF, Bottom Contact Style, 10 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Tin
Country of Origin MY
Current Rating 500 mA
Gender Female
Housing Material Thermoplastic
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Circuits 10
Number of Contacts 10
Number of Positions 10
Number of Rows 1
Orientation Right Angle
Packaging Cut Tape
Pitch 500 µm
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 1039151-52893-1095
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52893-1095 CAD Model

Description

The Molex 1039151-52893-1095 is a female connector designed for use in electronic applications.

  • Positions: 10
  • Pitch: 500 micrometers
  • Rows: 1
  • Termination: SMD/SMT
  • Contact Material: bronze
  • Voltage Rating: 50 V
  • Current Rating: 500 mA
  • Contacts: 10
  • Gender: female
  • Housing Material: thermoplastic
  • Circuits: 10
  • Orientation: right angle
  • Contact Plating: tin
  • Supply and Demand Status: shortage
  • Maximum Operating Temperature: 85 degrees Celsius
  • Minimum Operating Temperature: -25 degrees Celsius
  • RoHS Compliant: Yes
