Same model may have multiple batches, images only for reference.

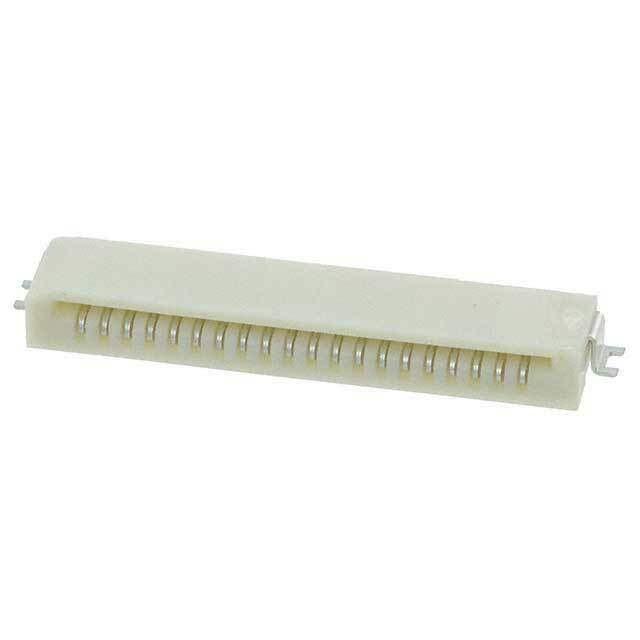

52852-2070 Real Image
Same model may have multiple batches, images only for reference.

52852-2070

Part No 52852-2070
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.00mm Pitch Easy-On FFC/FPC Connector, Surface Mount, Right-Angle, Non-ZIF, Bottom Contact Style, 20 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin MY
Current Rating 500 mA
Depth 4.8 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Housing Material Polyphenylene
Length 26.3 mm
Material Bronze
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 20
Number of Contacts 20
Number of Positions 20
Number of Rows 1
Orientation Right Angle
Packaging Tape and Reel
Pitch 1 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1039141-52852-2070
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52852-2070 CAD Model

Description

The Molex, LLC FFC,FPC(FlatFlexible)Connector is a high-quality connector designed for use in various electronic devices.

  • Package: tape and reel
  • Standard Package: 20
  • Win Source Part Number: 1039141-52852-2070
  • Pitch: 1 mm
  • Current Rating: 500 mA
