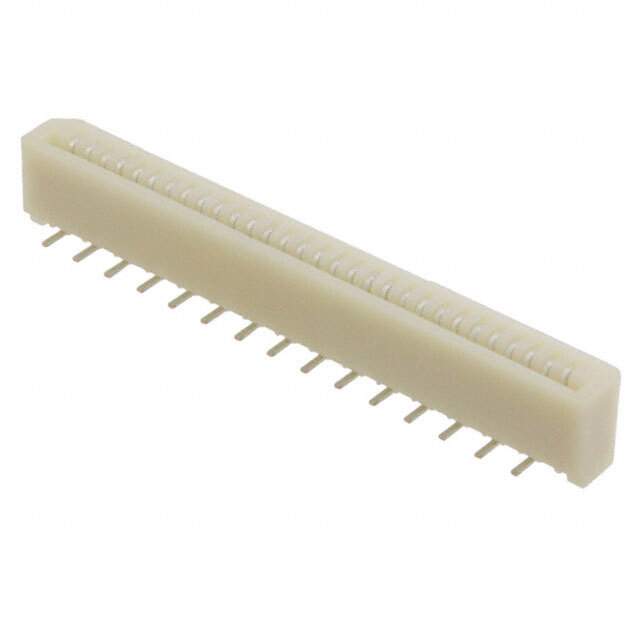

52808-3070 Real Image
Same model may have multiple batches, images only for reference.

52808-3070

Part No 52808-3070
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.00mm Pitch FFC/FPC Connector, SMT, Vertical, Non-ZIF Receptacle, 30 Circuits, Lead-Free
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Contact Resistance 30 mΩ
Country of Origin MY
Current Rating 500 mA
Depth 3 mm
ELV Compliant
Gender Female
Housing Color Natural
Housing Material Polyphenylene
Length 33 mm
Material Bronze
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 125 V
Max Voltage Rating (DC) 125.125 kV
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 30
Number of Contacts 30
Number of Positions 30
Number of Rows 1
Orientation Vertical
Packaging Tape & Reel
Pitch 2 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 125 V
Voltage Rating (AC) 125 V
Wire/Cable Type Flat Flex
Win Source Part Number 986811-52808-3070
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52808-3070 CAD Model

Description

The 986811-52808-3070 is a flat flexible connector manufactured by Molex, LLC.

  • Packaging: tape & reel
  • Positions: 30
  • Pitch: 2 mm
  • Popularity: low popularity
  • Supply and Demand Status: shortage
  • Maximum Operating Temperature: 80 °C
  • Minimum Operating Temperature: -20 °C
  • RoHS Compliant: Yes
  • ELV Compliant: Yes
