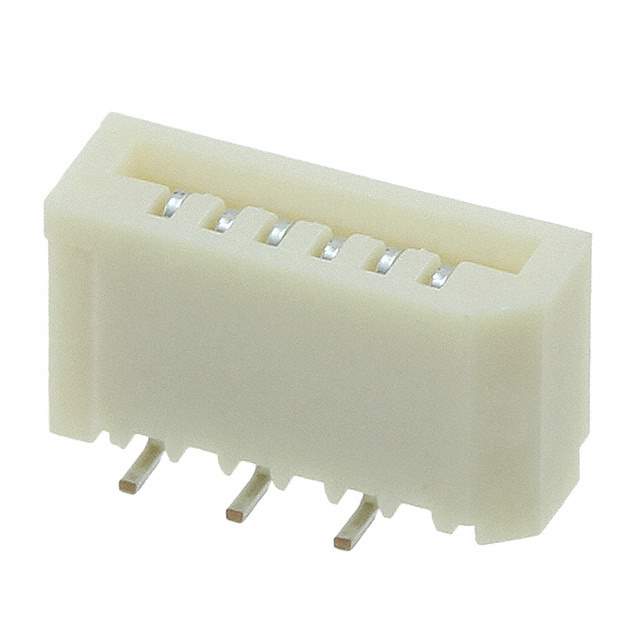

The 52808-0670 is a Flat Flex Cable (FFC) connector, engineered by Molex, LLC. This connector is designed to create a reliable and compact interconnection solution for FFC cables in diverse electronic applications. Its attributes make it particularly well-suited for devices requiring high-density and flexible connections.

Applications

• Liquid Crystal Displays (LCDs)
• Light Emitting Diode (LED) Displays
• Digital Cameras
• Notebook Computers
• Tablets
• Printers
• Scanners

Features

• Zero Insertion Force (ZIF): Facilitates easy and secure cable insertion and removal, reducing the risk of FFC damage.
• Fine Pitch: Enables high-density connections, optimizing space utilization in compact devices.
• Surface Mount Technology (SMT): Compatible with automated assembly processes, decreasing manufacturing costs.
• Durable Housing: Provides mechanical stability and protection against environmental influences.
• Halogen-Free: Aligned with environmental standards, minimizing potential hazards.
• RoHS Compliance: Adheres to the Restriction of Hazardous Substances directive, ensuring minimal use of hazardous materials.

Benefits

• Space Optimization: Enables the miniaturization of electronic devices.
• Consistent Connection: Ensures reliable signal and power transmission.
• Streamlined Assembly: Simplifies manufacturing and reduces labor costs.
• Environmentally Conscious: Reduces the utilization of hazardous materials.
• Enhanced Design Flexibility: Supports a range of cable thicknesses and configurations.
• Reduced Maintenance: Minimizes the need for frequent repairs and replacements due to robust construction.

Additional Details

The 52808-0670 FFC connector typically features a 0.5mm pitch. The number of circuits (contacts) is 6. It's designed for surface mount soldering to printed circuit boards (PCBs). Typically, the housing material is a high-temperature thermoplastic that can endure reflow soldering temperatures. Contact materials generally consist of phosphor bronze or copper alloy, plated with tin or gold for enhanced conductivity and corrosion resistance. The operating temperature range usually spans from -40°C to +85°C. The connector’s low-profile design ensures it adds minimal height when mounted on a PCB. It is frequently implemented in applications that demand high-speed data transmission. Accurate cable alignment is essential for optimal performance and longevity.
