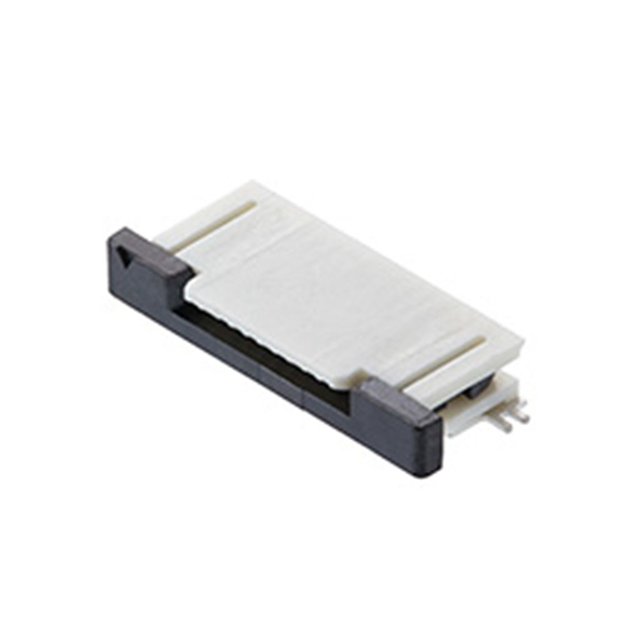

52745-1433 Real Image
Same model may have multiple batches, images only for reference.

52745-1433

Part No 52745-1433
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Easy-On FFC/FPC Connector, Top Contact, 2mm Height, 14 Circuits, Tin-Silver-Bismuth
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Silver, Tin
Country of Origin JP
Current Rating 500 mA
Flammability Rating UL94 V-0
Housing Material Nylon
Maximum Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 14
Number of Positions 14
Number of Rows 1
Orientation Right Angle
Pitch 500 µm
REACH SVHC No SVHC
RoHS Compliant
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 996137-52745-1433
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52745-1433 CAD Model

Description

The Molex FFC/FPC (Flat Flexible) Connector is a highly reliable and space-saving option for connecting flexible printed circuits or flat cables.

  • Positions: 14
  • Pitch: 500 µm
  • Orientation: right-angle
  • Contact Material: bronze
  • Voltage Rating: 50 V
  • Current Rating: 500 mA
  • Housing Material: nylon
  • RoHS Compliance: compliant
  • Alternative Parts: cross-reference
  • Mounting: surface mounting
