52559-2253 Real Image
Same model may have multiple batches, images only for reference.

52559-2253

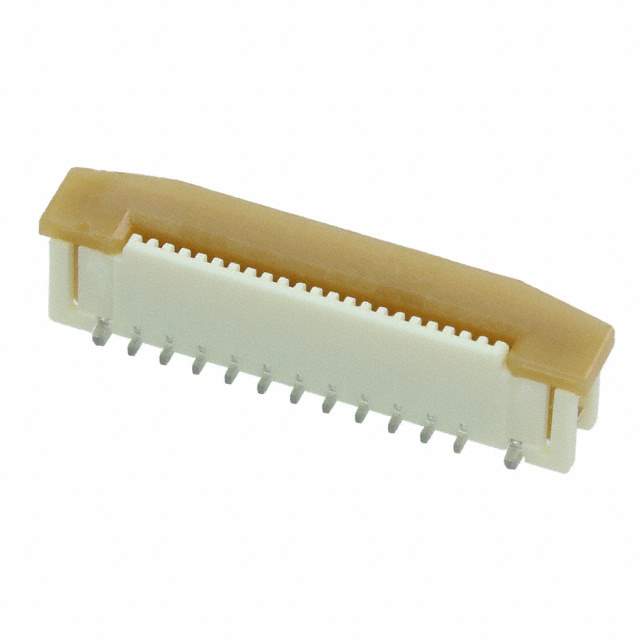

Part No 52559-2253
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Easy-On Type FFC/FPC Connector Vertical Surface Mount ZIF 22 Circuits Gold (Au) Contact Plating
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Polyphenylene
Contact Material Bronze
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin MY
Current Rating 500 mA
Depth 3 mm
Flammability Rating UL94 V-0
Housing Color Natural
Housing Material Nylon
Length 16.7 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 22
Number of Contacts 22
Number of Positions 22
Number of Rows 1
Orientation Vertical
Pitch 1 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Schedule B 8536694040, 8536694040
Termination Solder
Voltage Rating 50 V
Wire/Cable Type Straight
Win Source Part Number 1039112-52559-2253
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52559-2253 CAD Model

Description

The Molex 1039112-52559-2253 series FFC, FPC (Flat Flexible) connector is a vertical connector with 22 positions and a pitch of 1mm.

  • Mounting: surface mount
  • Housing Material: nylon
  • Actuator Material: polyphenylene
  • Contact Plating: gold
  • Contact Resistance: 20 mΩ
  • Supply and Demand Status: shortage
