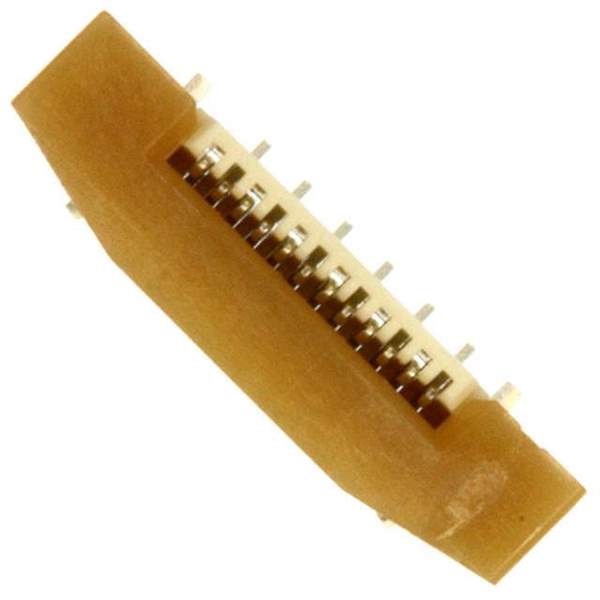

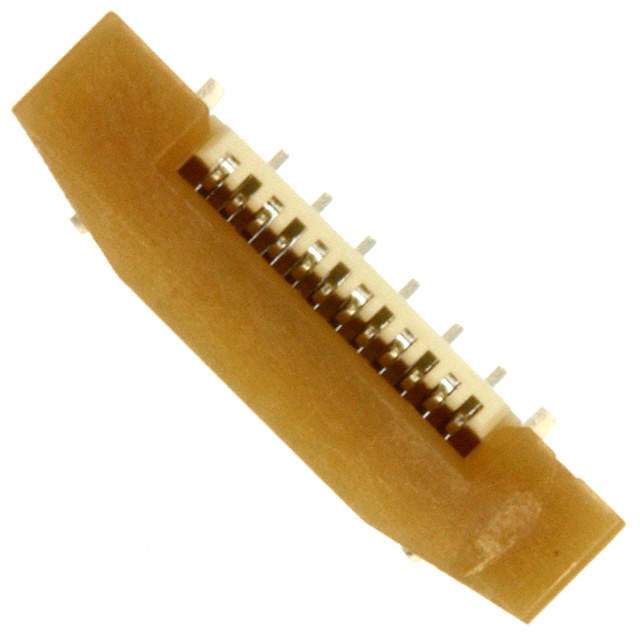

52559-1272

Name: 52559-1272
Brand: Molex, LLC
SKU: 546421
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	52559-1272
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	0.5 FPC CONN ASSY ZIF SMT ST EMBSTP PKG \| CONN FFC VERT 12POS 0.50MM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Status	Obsolete
Flat Flex Type	FFC, FPC
Mounting Style	SMD
Connector/Contact Type	Contacts, Vertical - 1 Sided
Number of Positions	12
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.154" (3.90mm)
Locking Feature	Slide Lock
Cable End Type	Straight, Tapered
Contact Material	Phosphor Bronze
Contact Finish	Tin Bismuth
Dielectric Material	Polyamide (PA46), Nylon 4/6
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	39.4μin (1.00μm)
Mating Cycles	20
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1129109-52559-1272
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 52559-1272 CAD Model

Alternative Products

Description

The Molex 1129109-52559-1272 is a surface mountable connector with a zero insertion force (ZIF) feature.

Popularity: Medium
Supply and Demand: Balanced
Manufacturer Homepage: www.molex.com
Pitch: 0.020" (0.50mm)
Number of Positions: 12
Contact Material: Phosphor bronze
Contact Finish: Tin bismuth
Voltage Rating: 50V
Current Rating: 0.5A
Package: Reel
Quantity: 1
Application: Suitable for use in a variety of electronic applications
