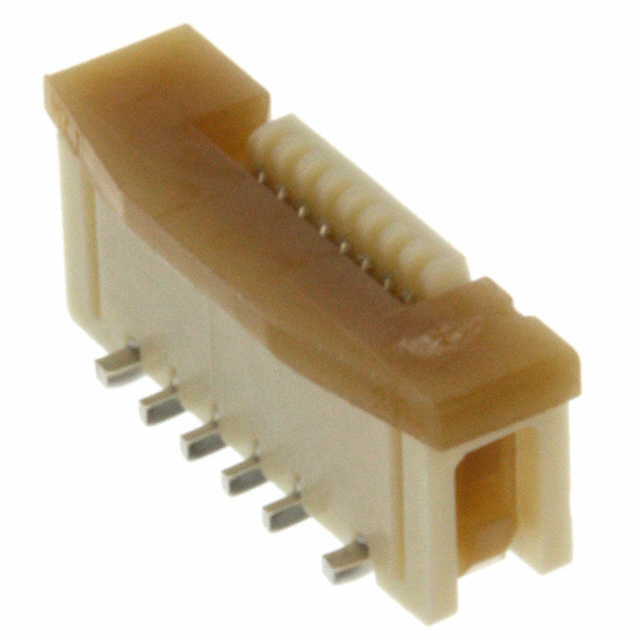

52559-0870 Molex, LLC
Same model may have multiple batches, images only for reference.

52559-0870

Part No 52559-0870
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 8POS 0.50MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Status Obsolete
Flat Flex Type FFC, FPC
Mounting Style SMD
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.154" (3.90mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Dielectric Material Polyamide (PA46), Nylon 4/6
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 39.4μin (1.00μm)
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 713118-52559-0870
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 52559-0870 CAD Model

Description

The Molex 713118-52559-0870 is a zero insertion force (ZIF) connector with a slide lock feature.

  • Positions: 8
  • Pitch: 0.020" (0.50mm)
  • Mounting: surface mount technology
  • Termination: solder
  • Contact Finish: tin bismuth with a thickness of 39.4μin (1.00μm)
  • Contact Material: phosphor bronze
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.154" (3.90mm)
  • Cable Type: FFC and FPC
  • Packaging: reel
  • Status: obsolete product
  • Popularity: low
  • Supply and Demand Status: balanced
