Same model may have multiple batches, images only for reference.

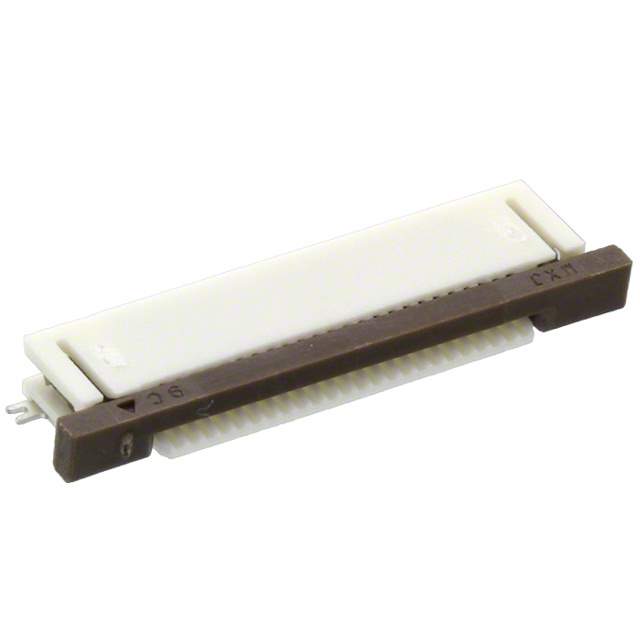

52437-2433 Real Image
Same model may have multiple batches, images only for reference.

52437-2433

Part No 52437-2433
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 24 POS 0.5mm Solder RA SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Silver, Tin
Country of Origin JP
Current Rating 500 mA
Flammability Rating UL94 V-0
Gender Receptacle
Housing Material Nylon
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 24
Number of Positions 24
Number of Rows 1
Orientation Right Angle
Pitch 500 µm
REACH SVHC No SVHC
RoHS Compliant
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 1027675-52437-2433
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52437-2433 CAD Model

Description

The Molex 1027675-52437-2433 is a surface mount FFC/FPC connector with 24 positions and a pitch of 500 µm.

  • Positions: 24
  • Pitch: 500 µm
  • Orientation: Right Angle
  • Voltage Rating: 50 V
  • Current Rating: 500 mA
  • RoHS: Compliant
  • Flammability Rating: UL94 V-0
  • Series: Molex series
