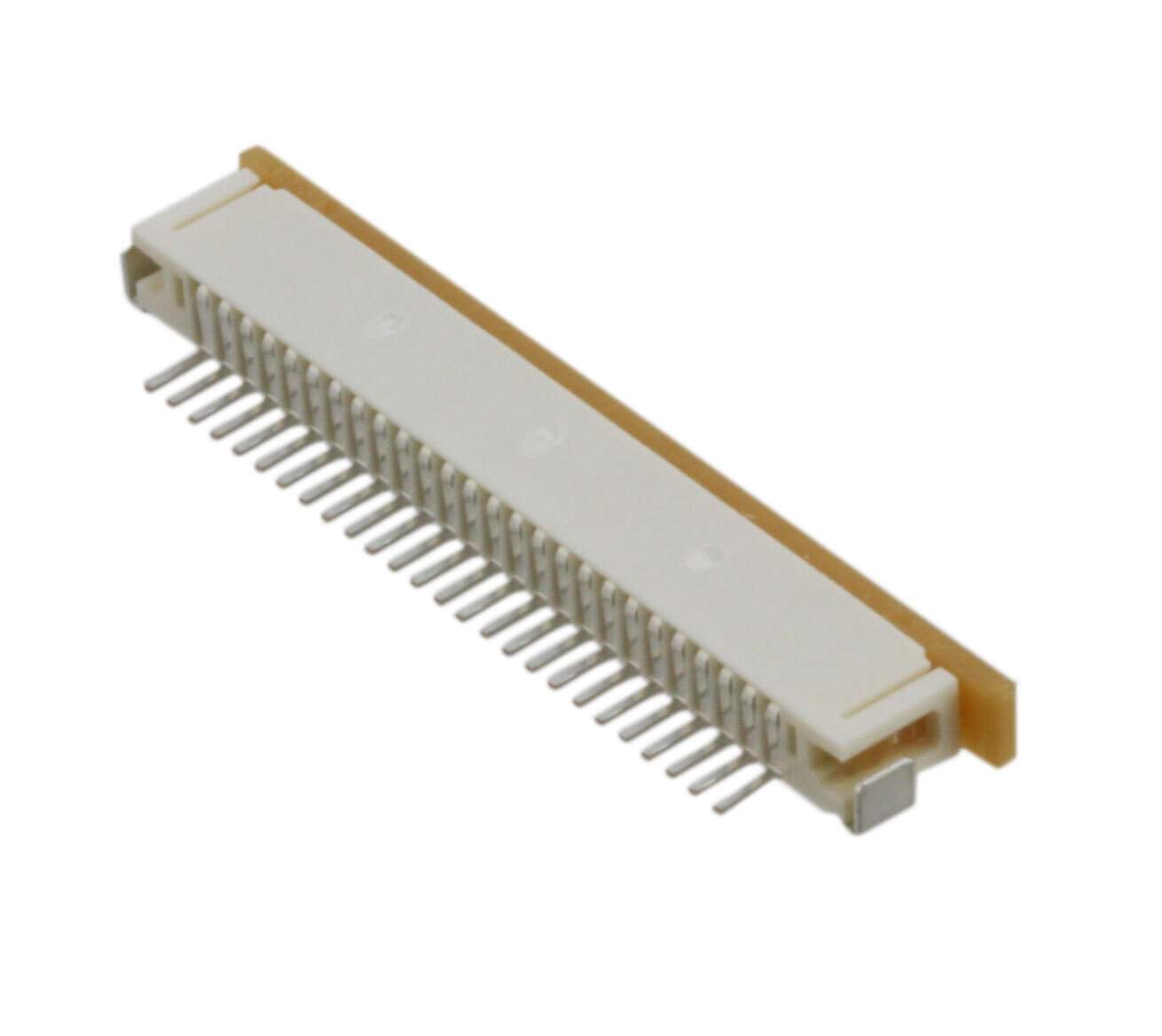

52271-2679 Real Image
Same model may have multiple batches, images only for reference.

52271-2679

Part No 52271-2679
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description FFC/FPC; Easy-On Type; Rt Angle; SMT; ZIF; Bottom Cont Style; 26 Cir; High Barrier Pack
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 500 mA
Depth 6.7 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Housing Color Natural
Housing Material Nylon
Insulation Resistance 100 MΩ
Lead Pitch 1 mm
Material Bronze
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 50 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 26
Number of Contacts 26
Number of Poles 26
Number of Positions 26
Number of Rows 1
Orientation Right Angle
Pitch 1 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 50 V
Voltage Rating (AC) 50 V
Voltage Rating (DC) 50 V
Wire/Cable Type Flat Flex
Win Source Part Number 989426-52271-2679
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52271-2679 CAD Model

Description

The Molex, LLC is a low-popularity electronic component with the Win Source Part Number 989426-52271-2679.

  • Category: FFC, FPC (Flat Flexible) Connector
  • Pitch: 1 mm
  • Number of Positions: 26
  • Voltage Rating: 50 V
  • Current Rating: 500 mA
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Housing Material: Nylon
  • Housing Color: Natural
  • RoHS: Compliant
  • ELV: Compliant
