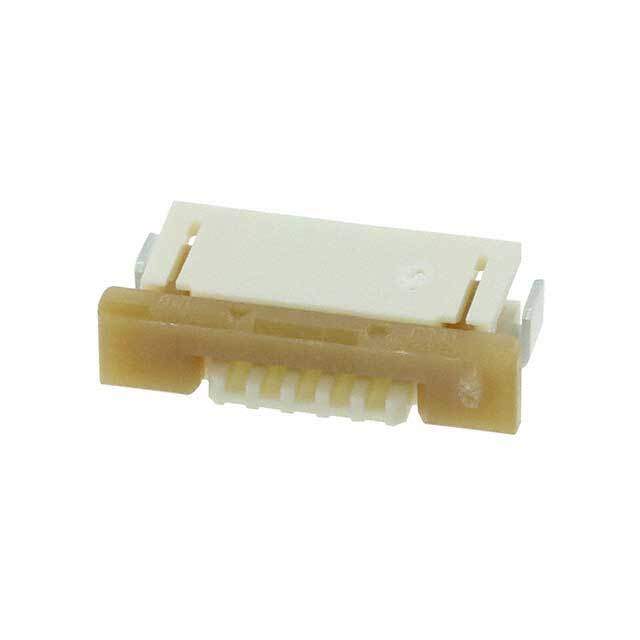

52271-0579 Real Image
Same model may have multiple batches, images only for reference.

52271-0579

Part No 52271-0579
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 5 Circuits,...
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Tin
Country of Origin JP
Current Rating 500 mA
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Housing Material Nylon
Material Bronze
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 5
Number of Contacts 5
Number of Positions 144
Number of Rows 1
Orientation Right Angle
Packaging Tape and Reel
Pitch 1 mm
REACH SVHC No SVHC
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 50 V
Wire/Cable Type Flat Flex
Win Source Part Number 1039101-52271-0579
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52271-0579 CAD Model

Description

The 1039101-52271-0579 from Molex, LLC is a high-quality flat flex connector designed for use in FFC/FPC applications.

  • Positions: 144
  • Row: One
  • Supply and Demand: Shortage
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Housing Material: Nylon
  • Stackable: Yes
  • Operating Temperature Range: -40°C to 85°C
  • ELV Compliant: Yes
  • Flammability Rating: UL94 V-0
