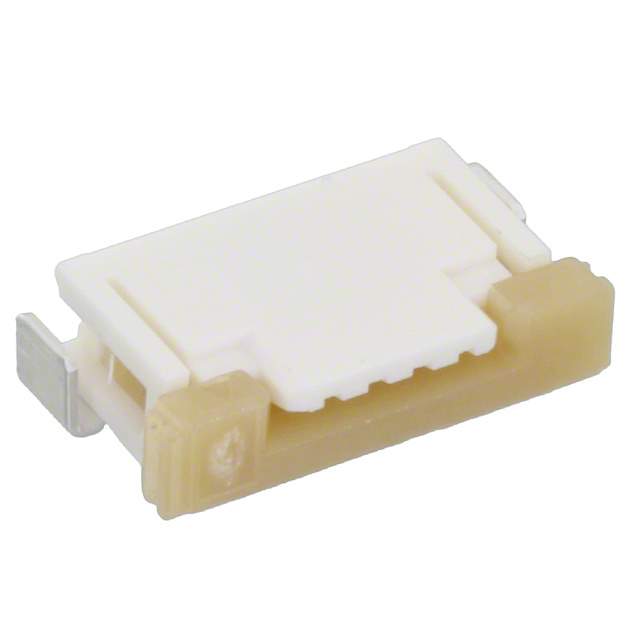

52207-0433 Real Image
Same model may have multiple batches, images only for reference.

52207-0433

Part No 52207-0433
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC Connector F 4 POS 1.27mm Solder ST Thru-Hole Automotive Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0433
Contact Location Top
Contact Material Bronze
Contact Plating Silver, Tin
Country of Origin MY
Current Rating 1 A
Depth 7.6 mm
Gender Receptacle
Housing Color White
Housing Material Nylon
Length 10.3 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -30 °C
Mount Surface Mount
Number of Circuits 4
Number of Contacts 4
Number of Pins 4
Number of Positions 4
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel
Pitch 1 mm
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536694040
Stackable No
Termination Solder
Voltage Rating 125 V
Win Source Part Number 1039094-52207-0433
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52207-0433 CAD Model

Description

The Molex 1039094-52207-0433 connector is a 4-position connector with a pitch of 1 mm.

  • Orientation: Right-angle
  • Termination: Solder
  • Pitch: 1 mm
  • Number of Positions: 4
  • Voltage Rating: 125 V
  • Current Rating: 1 A
  • Category: FFC, FPC (Flat Flexible) Connectors
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -30 °C
