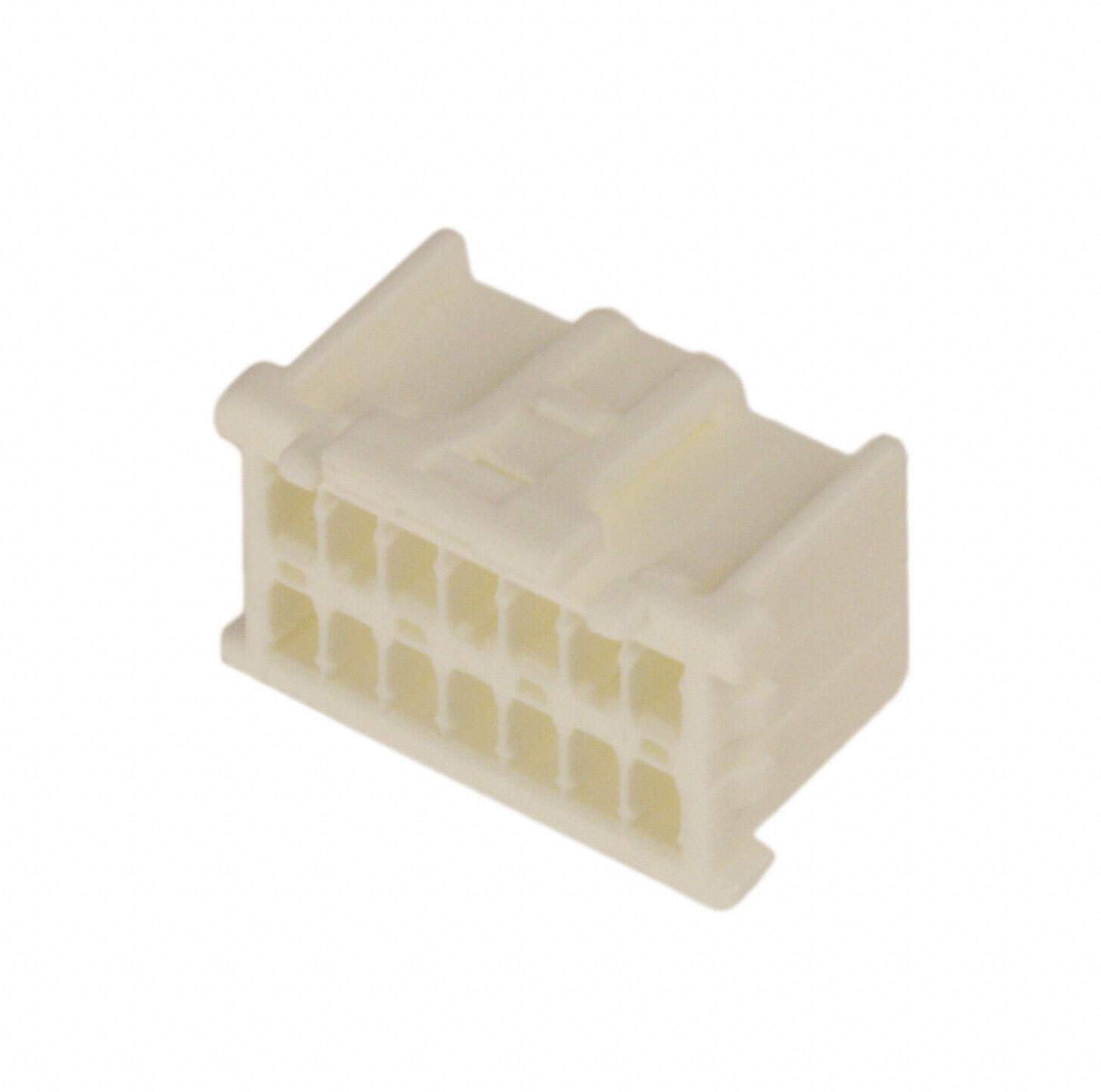

51353-1400 Real Image
Same model may have multiple batches, images only for reference.

51353-1400

Part No 51353-1400
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 2.00mm Pitch MicroClasp Wire-to-Board Receptacle Housing, Positive Lock, Dual Row, 14 Circuits, White
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Connector Type Rectangular
Contact Gender Female
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 3 A
Depth 10.9 mm
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Nylon
Insulation Resistance 1 GΩ
Lead Pitch 2 mm
Length 17.4 mm
Material Nylon
Max Current Rating 3 A
Max Operating Temperature 85 °C
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -25 °C
Mount Cable
Number of Contacts 14
Number of Pins 6
Number of Poles 14
Number of Positions 14
Number of Rows 2
Orientation Straight
Pitch 2 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Crimp
Voltage Rating (AC) 250 V
Width 11.5 mm
Working Voltage 250 V
Win Source Part Number 1112639-51353-1400
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 51353-1400 CAD Model

Description

The Molex LLC 1112639-51353-1400 is a white rectangular connector with 14 positions and a pitch of 2 mm.

  • Positions: 14
  • Pitch: 2 mm
  • Termination: Crimp
  • Current Rating: 3 A
  • Contacts: 14
  • Type: Receptacle
  • Length: 17.4 mm
  • Width: 11.5 mm
  • Housing Material: Nylon
  • Contact Plating: Tin
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
  • Used In: Custom Parts
  • Halogen Content: Low Halogen
  • Working Voltage: 250 V
  • Maximum Voltage: 250.25 kV
  • Maximum Current: 3 A
  • Flammability Rating: UL94 V-0
