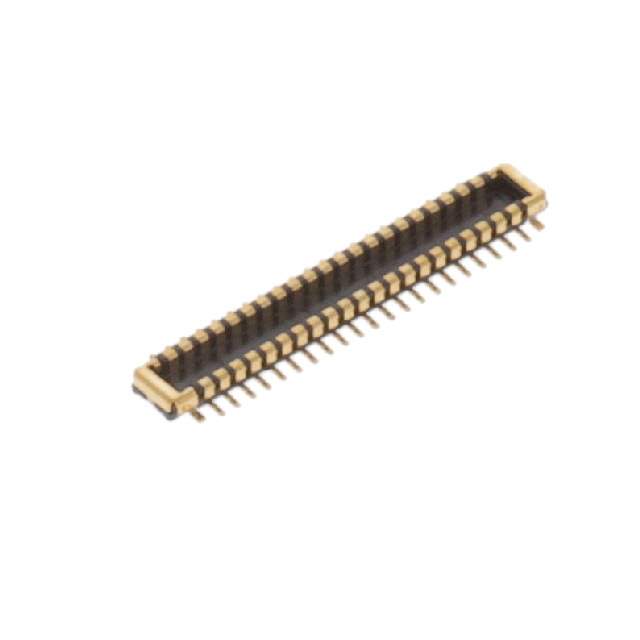

5050704222 Real Image
Same model may have multiple batches, images only for reference.

5050704222

Part No 5050704222
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 42POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 10 Weeks
Features 42 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Manufacturer Molex, LLC
Series SlimStack Armor 505070
Package Reel - TR
Mounting Surface Mount
Family Name 505070
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 23-5050704222TR, 23-5050704222CT, 23-5050704222DKR, 5050704222-ND, 505070-4222
Quantity per package 8000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907085-5050704222
Ultra Librarian 3D Model Ultra Librarian 5050704222 CAD Model

Description

The 907085-5050704222 from Molex is a SlimStack Armor 505070 series connector plug that is designed for surface mount applications.

  • Positions: 42
  • Contact Type: outer shroud
  • Contact Finish: gold
  • Mounting: surface mount
  • Packaging: reel - TR
  • Family: 505070
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Supply and Demand: balanced
  • Quantity per Package: 8000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 10 weeks
