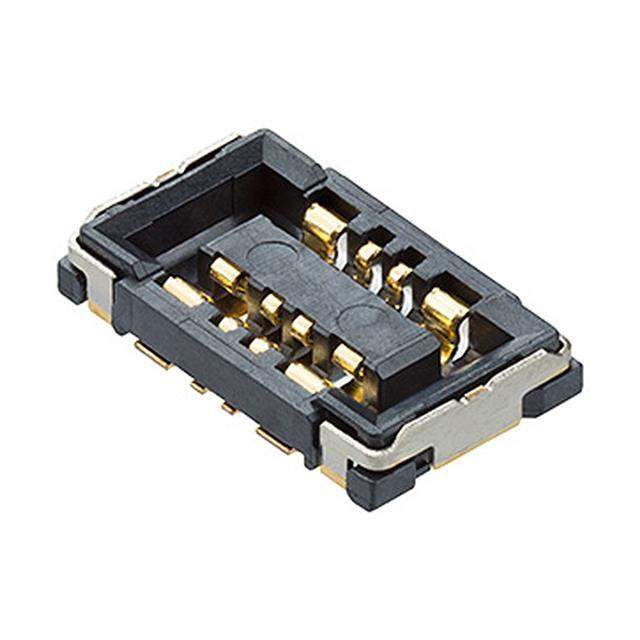

5050040812 Real Image
Same model may have multiple batches, images only for reference.

5050040812

Part No 5050040812
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 4POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series SlimStack 505004
Package Tape & Reel
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 8 (4 + 4 Power)
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Pick and Place, Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.030" (0.75mm)
Base Product Number 505004
Standard Package 7,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856323-5050040812
Ultra Librarian 3D Model Ultra Librarian 5050040812 CAD Model

Description

The SlimStack 505004 is a rectangular connector array designed for board-to-board connections in electronic devices.

  • Pitch: 0.016" (0.40mm)
  • Height Above Board: 0.030" (0.75mm)
  • Positions: 8 (4 power and 4 signal)
  • Connector Type: receptacle with center strip contacts
  • Features: pick and place compatible, solder retention
  • Contact Finish: gold
  • Mounting: surface mount
  • Package: tape & reel
  • Standard Package: 7,000 pcs
  • Manufacturer: Molex, LLC
  • Status: active
