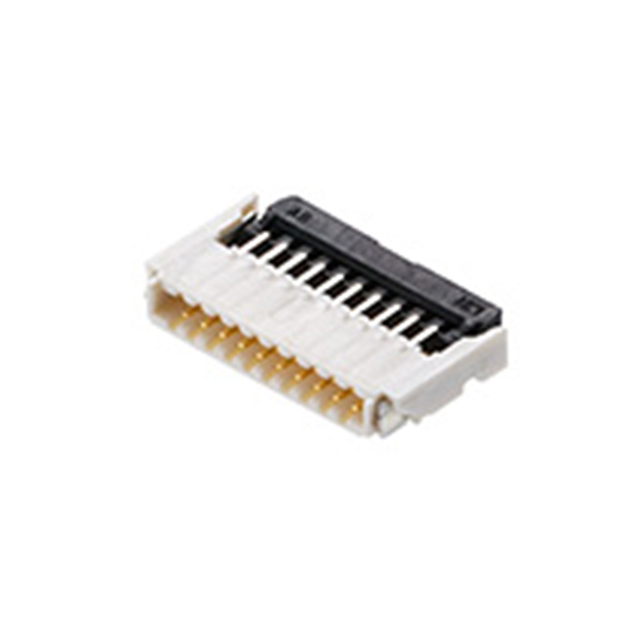

The Molex 503480-2400 is a 0.5mm pitch Easy-On FFC/FPC connector, engineered for reliable connections between flexible flat cables (FFC) or flexible printed circuits (FPC) and printed circuit boards (PCBs). This connector is designed for compact and high-density applications, offering a secure and space-efficient solution in various electronic devices.

Applications

• Notebook Computers: Used to connect LCD panels, touchscreens, and other internal components.
• Tablets: Provides reliable connections for displays, cameras, and touch sensors.
• Smartphones: Connects displays, cameras, and other internal components in a compact form factor.
• Digital Cameras: Used to connect image sensors, LCD screens, and control buttons.
• Portable Gaming Devices: Provides secure connections for displays and control interfaces.

Features

• 0.5mm Pitch: Enables high-density connections, maximizing board space efficiency.
• Easy-On Actuator: Simplifies cable insertion and ensures a secure, reliable connection.
• Surface Mount Technology (SMT): Facilitates automated assembly processes and efficient board layout.
• Top Contact Configuration: Allows for convenient cable insertion from the top of the connector.
• 24 Circuits: Provides a high number of connection points for complex applications.

Benefits

• Space Optimization: Compact design enables efficient use of PCB space in densely populated applications.
• Reliable Connection: Ensures stable and secure connectivity between FFC/FPC cables and the PCB.
• Ease of Use: Streamlines the assembly process with the user-friendly Easy-On actuator.
• Versatile Application: Suitable for a wide range of electronic devices requiring FFC/FPC connectivity.
• Cost-Effective Solution: Provides a reliable and efficient connectivity solution at a competitive price point.

Additional Details

The Molex 503480-2400 features 24 circuits with a 0.5mm pitch, making it well-suited for applications where high-density connections are essential. Its surface mount termination simplifies the assembly process and enhances the overall efficiency of board manufacturing. The top contact configuration allows for straightforward cable insertion, and the Easy-On actuator ensures a firm and reliable connection. Designed to withstand a wide range of operating temperatures, typically from -25°C to +85°C, this connector offers consistent performance in various environments. The housing material is commonly made from high-temperature thermoplastic, providing excellent resistance to soldering heat. The contacts are constructed from copper alloy with a tin or gold plating, ensuring optimal conductivity and corrosion resistance. Furthermore, the connector complies with RoHS standards, ensuring environmental compliance. Its compact size and robust design make it an ideal choice for connecting FFC/FPC cables in a diverse range of electronic devices.
