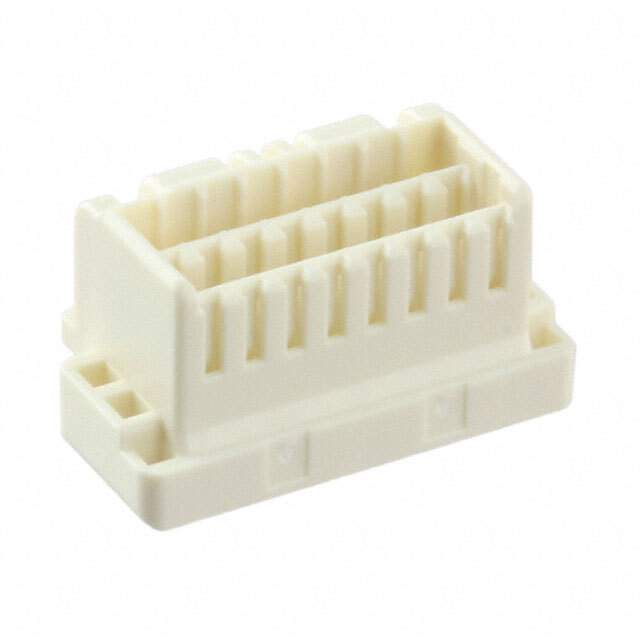

The Molex 503149-1600 is a Micro-Lock Plus Wire-to-Board Connector Header. Part of the Micro-Lock Plus series, this header provides a secure and compact solution for wire-to-board connections in a variety of electronic applications. Its design emphasizes reliability and durability, making it suitable for environments where secure mating is essential.

Applications

• Consumer electronics, such as home appliances and entertainment systems
• Automotive electronics, including lighting and infotainment systems
• Industrial automation equipment
• Medical devices
• Robotics
• Lighting systems
• Security systems

Features

• Compact design for space-constrained applications
• Positive lock for secure mating
• Durable construction for reliable performance
• Wire-to-board connection
• Micro-Lock Plus Series compatibility
• High temperature resistance

Benefits

• Ensures reliable electrical connections, reducing downtime and maintenance costs
• Saves space in compact designs, enabling smaller and lighter products
• Provides secure mating, preventing accidental disconnections
• Offers long-term durability, ensuring consistent performance over time
• Simplifies the assembly process, reducing manufacturing costs
• Suitable for high-vibration environments due to the secure locking mechanism

Additional Details

The 503149-1600 header is designed to work with specific Molex terminals and mating connectors within the Micro-Lock Plus series. Selecting the appropriate wire gauge and terminals is crucial for optimal performance. The header material is typically a high-performance plastic, chosen for its electrical insulation properties and resistance to environmental factors. The positive lock feature provides an audible click when mating, confirming a secure connection. This connector is designed to meet industry standards for safety and performance, ensuring reliable operation in a variety of demanding applications.
