Part No 503149-1000
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)

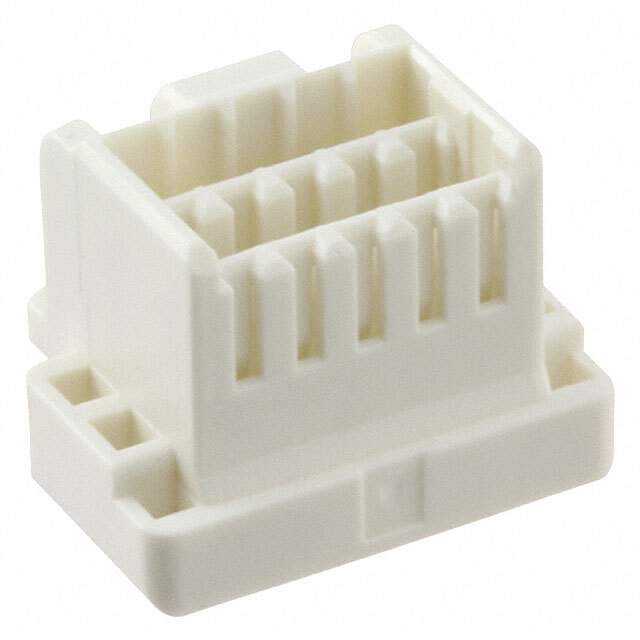

Description 1.50mm Pitch, CLIK-Mate Plug Crimp Housing, Dual Row, Positive Lock, 10 Circuits, Beige
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Beige
Connector Type Non-Gendered, Plug
Country of Origin JP
Current Rating 1 A
Depth 8.6 mm
Fastening Type Latch
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Beige
Housing Material Polybutylene
Length 11.8 mm
Max Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Cable, Free Hanging
Number of Circuits 24
Number of Contacts 10
Number of Pins 10
Number of Positions 10
Number of Rows 2
Orientation Right Angle
Pitch 1.5 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Row Spacing 1.5 mm
Termination Crimp
Voltage Rating 100 V
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 24 AWG
Win Source Part Number 1198919-503149-1000
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 503149-1000 CAD Model

Description

The Molex, LLC 1198919-503149-1000 is a 10-position non-gendered plug connector with a pitch of 1.5 mm and a row spacing of 1.5 mm.

  • Termination: Crimp
  • Fastening Type: Latch
  • Voltage Rating: 100 V
  • Current Rating: 1 A
  • Length: 11.8 mm
  • Material: Polybutylene
  • Circuits: 24
  • Rows: 2
  • Contacts: 10
  • Orientation: Right-angled
  • Housing Color: Beige
  • Mounting: Cable, free-hanging
  • RoHS: Compliant
  • Radiation Hardening: No
  • Minimum Operating Temperature: -25 °C
  • Maximum Operating Temperature: 85 °C
  • Suitable for: Use in custom parts
