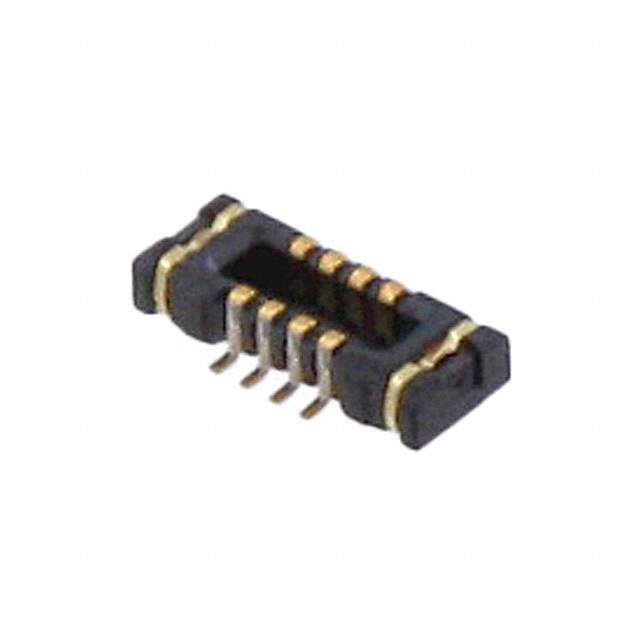

Part No 5024300820
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 8POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series SlimStack 502430
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 8
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 1mm
Height Above Board 0.031" (0.80mm)
Base Product Number 502430
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856284-5024300820
Ultra Librarian 3D Model Ultra Librarian 5024300820 CAD Model

Description

The SlimStack 502430 is a plug-type rectangular connector array designed for board-to-board interconnections in electronic devices made by Molex, LLC.

  • Connector Type: Rectangular connector array
  • Type: Plug
  • Application: Board-to-board interconnections
  • Pitch: 0.016" (0.40mm)
  • Positions: 8
  • Feature: Solder retention
  • Contact Finish: Gold
  • Height Above Board: 0.031" (0.80mm)
  • Mounting: Surface mountable
  • Packaging: Tape and reel
  • Standard Package: 3,000 pcs
  • Series: SlimStack
  • Status: Obsolete
