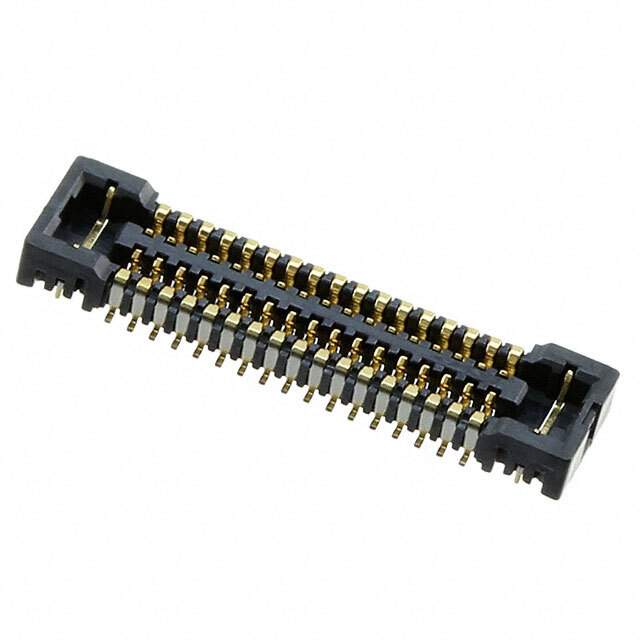

502426-3410

Name: 502426-3410
Brand: Molex, LLC
SKU: 546273
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	502426-3410
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	0.40mm (.016") Pitch SlimStack Board-to-Board Receptacle, SMT, Dual Row, Vertical, 1.00mm (.039") Stacking \| CONN RCPT 34POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Status	Obsolete
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	34
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Style	SMD
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	4.00μin (0.100μm)
Mated Stacking Heights	1mm
Height Above Board	0.039" (1.00mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1128961-502426-3410
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 502426-3410 CAD Model

Description

The Molex 1128961-502426-3410 is a receptacle connector with center strip contacts.

Positions: 34
Rows: 2
Pitch: 0.016 inches (0.40mm)
Features: solder retention
Contact Finish: gold
Contact Finish Thickness: 4.00μin (0.100μm)
Height Above Board: 0.039 inches (1.00mm)
Mated Stacking Height: 1mm
Mounting Style: SMD
Status: obsolete
Manufacturer Pack Quantity: 1
MSL Level: 1 (Unlimited)
