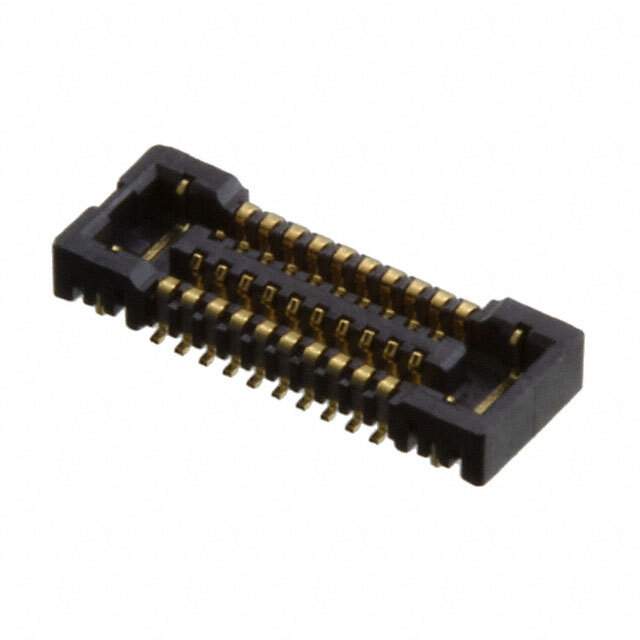

502426-2030

Name: 502426-2030
Brand: Molex, LLC
SKU: 546271
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	502426-2030
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	0.40mm (.016") Pitch SlimStack Board-to-Board Receptacle, SMT, Dual Row, Vertical, 1.00mm (.039") Stacking \| CONN RCPT 20POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Reel
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	20
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Style	SMD
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	4.00μin (0.100μm)
Mated Stacking Heights	1mm
Height Above Board	0.039" (1.00mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1128959-502426-2030
Manufacturer Homepage	www.molex.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 502426-2030 CAD Model

Alternative Products

Description

The Molex 1128959-502426-2030 is a 20-position center strip contact receptacle connector with a pitch of 0.016 inches (0.40mm) and a height above board of 0.039 inches (1.00mm).

Positions: 20
Contact Type: Center strip contact receptacle
Pitch: 0.016 inches (0.40mm)
Height Above Board: 0.039 inches (1.00mm)
Mounting Type: Surface mount technology (SMT)
Features: Solder retention
Contact Finish: Gold
Contact Finish Thickness: 4.00μin (0.100μm)
Supply and Demand Status: Balanced
Manufacturer Pack Quantity: 1
MSL Level: 1 (Unlimited)
