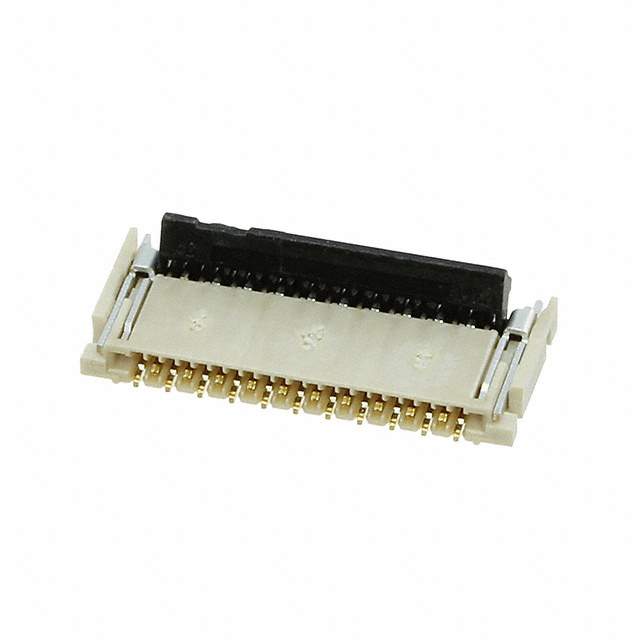

The Molex electronic component is a connector of the FFC, FPC (Flat Flexible) Connectors category. The product is from the BackFlip, Easy-On 502250 series and has 21 positions.

• Category: FFC, FPC (Flat Flexible) Connectors
• Series: BackFlip, Easy-On 502250
• Number of Positions: 21
• Pitch: 0.012" (0.30mm)
• Features: None
• Termination: Solder
• Contact Finish: Gold
• Package: Tape & Reel (TR), Cut Tape (CT)
• Contact Material: Copper Alloy
• Voltage Rating: 50V
• Height Above Board: 0.035" (0.88mm)
• Flat Flex Type: FPC
• Connector/Contact Type: Contacts, Top and Bottom
• FFC, FCB Thickness: 0.20mm
• Locking Feature: Flip Lock, Backlock
• Cable End Type: Notched or Tabbed
• Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
• Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
• Material Flammability Rating: UL94 V-0
• Housing Color: Natural
• Mating Cycles: 10
• Mounting Type: Surface Mount, Right Angle
• Temperature Range - Operating: -25°C ~ 85°C
• Actuator Color: Black
• ECCN: EAR99
• Current Rating (Amps): 0.2A
• REACH Status: Unaffected
• HTSUS: 8536.69.4051
• Status: Obsolete
