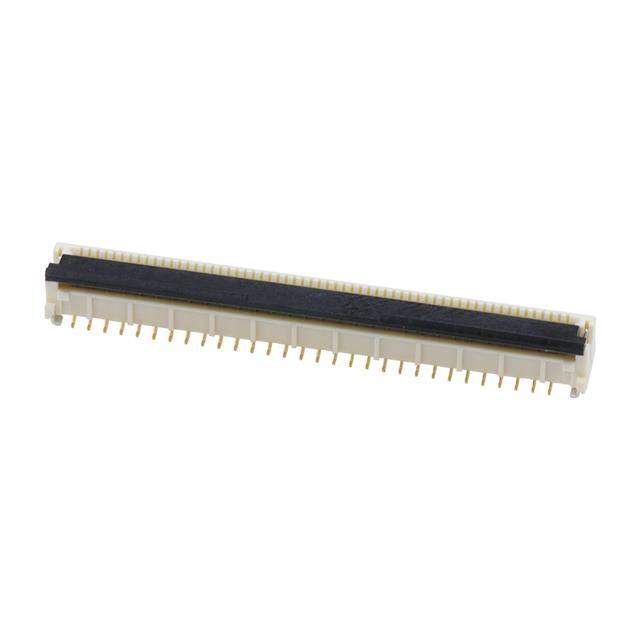

5019516030 Real Image1 5019516030 Real Image2
Same model may have multiple batches, images only for reference.
5019516030 Real Image1 5019516030 Real Image2
5019516030 Real Image1 5019516030 Real Image2
Same model may have multiple batches, images only for reference.

5019516030

Part No 5019516030
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.5 FPC HSG ASSY EASYONST60CKTEM / 60 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex, LLC
Series 1003903
Package Bulk
Flat Flex Type FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Top
Number of Positions 60
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.171" (4.35mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.4A per Contact
Contact Finish Thickness 3.94µin (0.10µm)
Housing Color White
Actuator Color Black
Mating Cycles 20
Base Product Number 501951
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 2,000 pcs
Win Source Part Number 1380855-5019516030
Ultra Librarian 3D Model Ultra Librarian 5019516030 CAD Model

Description

The 1380855-5019516030 is a 60-position FFC, FPC (Flat Flexible) Connector Assembly from Molex, LLC.

  • Pitch: 0.020" (0.50mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.94µin (0.10µm)
  • Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Voltage Rating: 50V
  • Current Rating: 0.4A
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C ~ 85°C
  • Locking Feature: Flip Lock
  • Cable End Type: Straight
