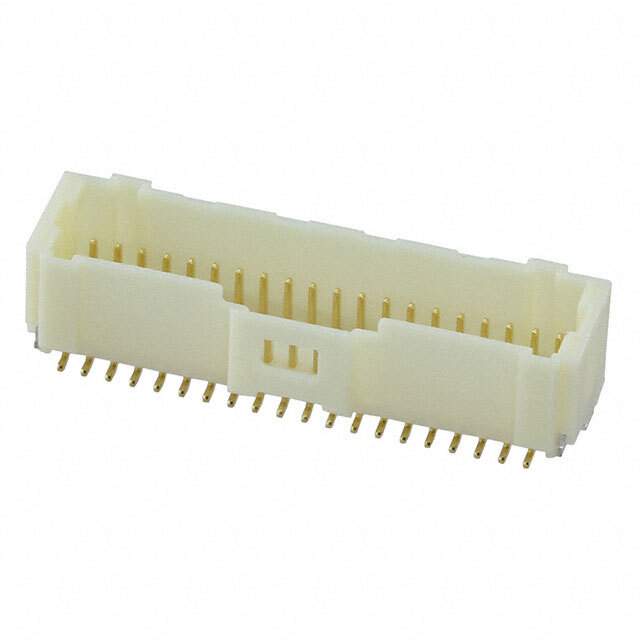

5011904027

Part No 5011904027
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 40CKT 1MM VERT DUAL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 40
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.105" (2.66mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.213" (5.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.9μin (0.10μm)
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Mated Stacking Heights 6.8mm
Applications General Purpose
Win Source Part Number 126435-5011904027
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5011904027 CAD Model

Description

5011904027 Electronic Component

The 5011904027 is crafted to provide superior electronic performance in a compact form factor. It is ideal for applications requiring precise control and efficient power usage.

Applications:

  • Computing devices
  • IoT applications
  • Power management systems
  • Advanced sensor networks

Features and Benefits:

  • High precision and reliability
  • Optimized for low-power applications
  • Robust design for extended lifespan
  • Seamless compatibility with modern technologies

The 5011904027 is the go-to solution for tech projects needing adaptable and high-performance components.
